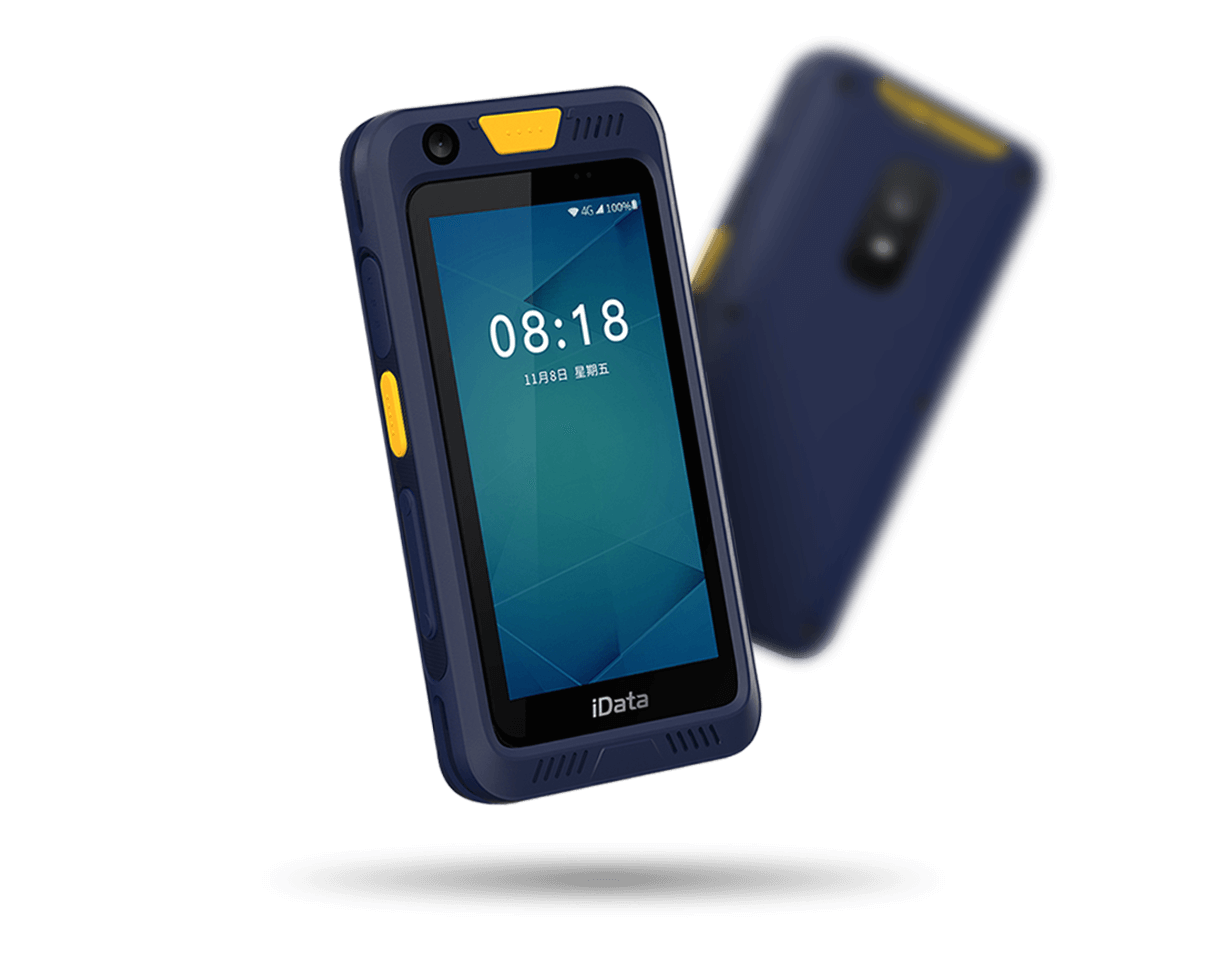

Small body, big skill

1   主体  右.png

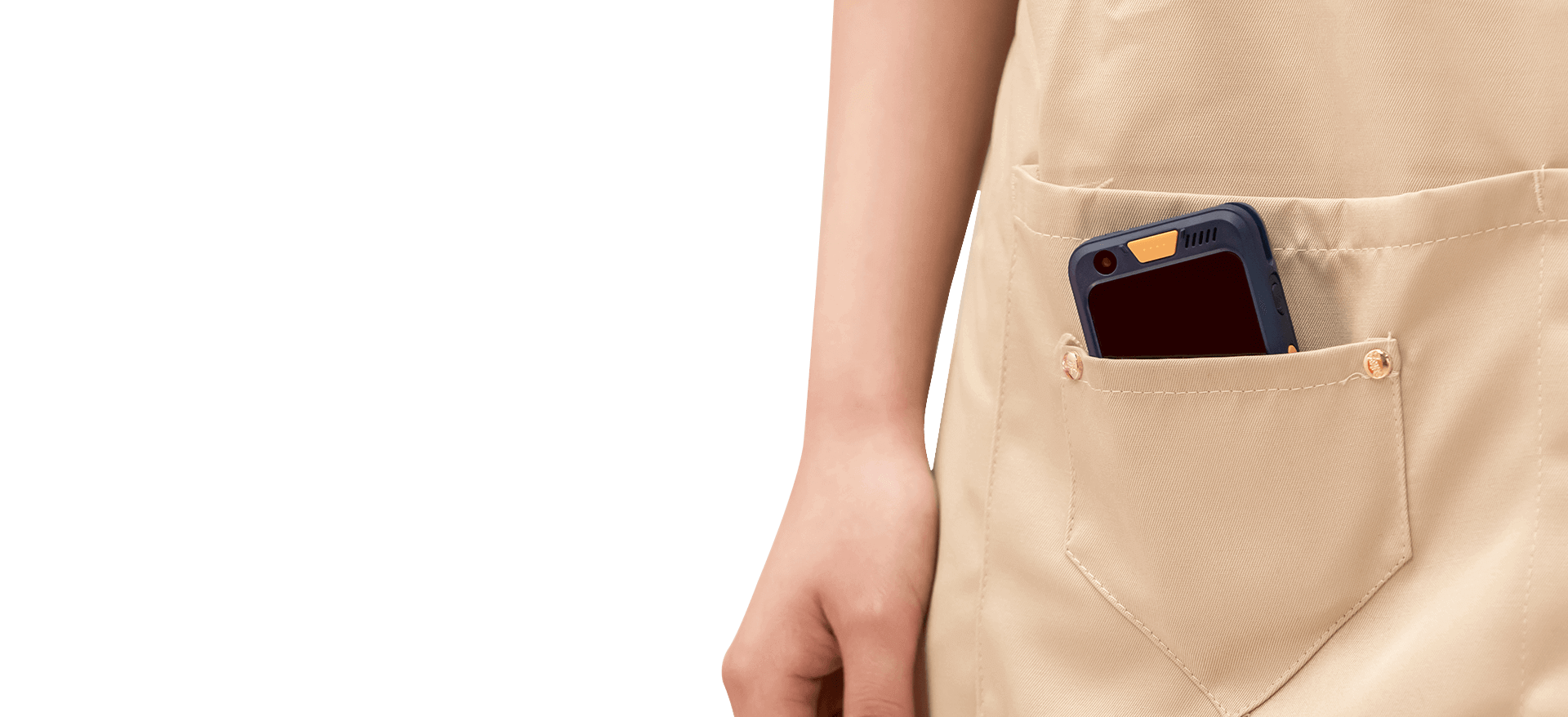

Ultra compact

The ultralight weight of 140g, and minisize thickness of 15mm,
so that your employees can easily put the equipment into the pocket or bag,
it is easy to carry out and store, you won't feel tired for a long time of carrying.

2 主体 右-2.png
  • Ultra compact

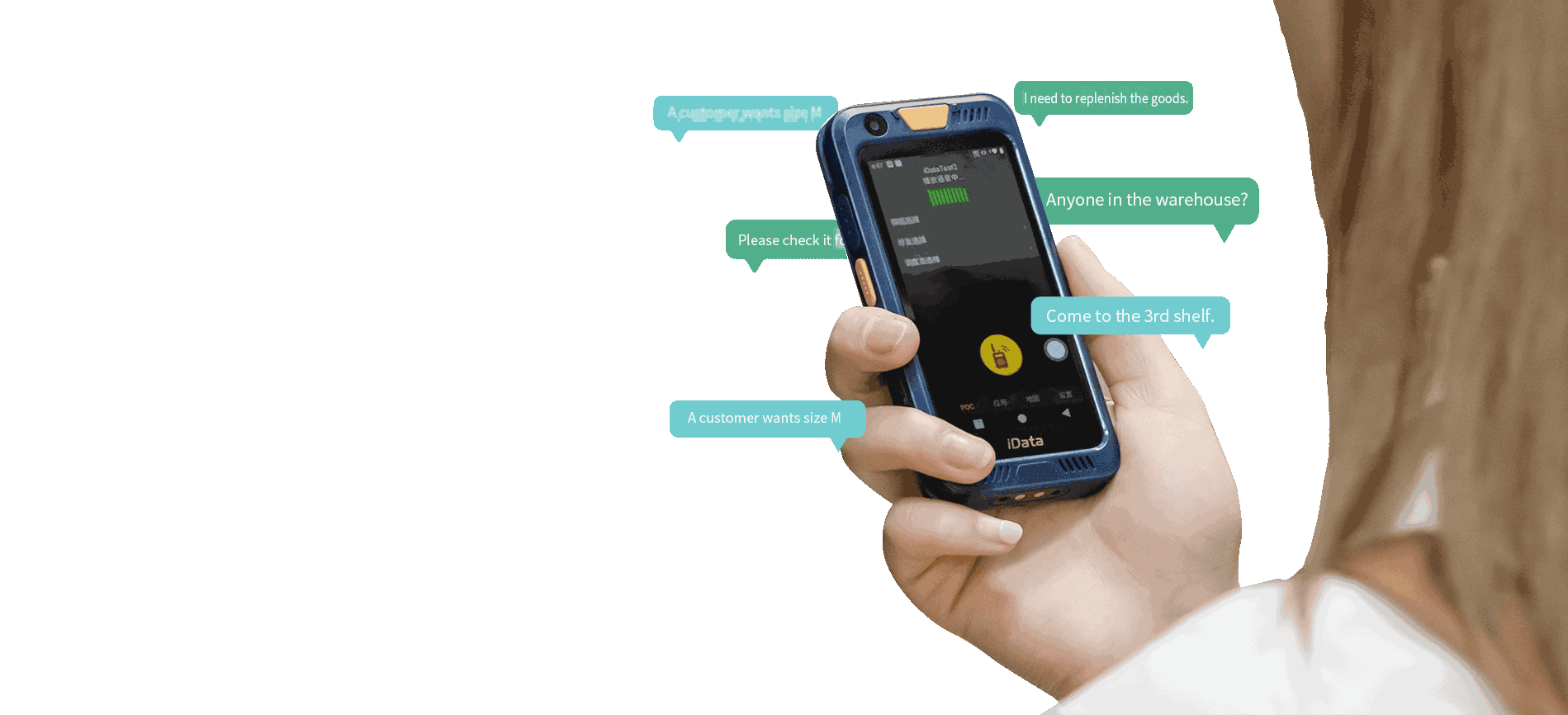

One-key intercom

The PTT service that can be used directly after the box being opened,
you only need to press one key to enable barrier-free voice communications between colleagues,
making it easy for employees to give feedback on problems and managers to assist.
And unlike ordinary intercom, iData I2's scanning engine can also work simultaneously when the intercom is started,
helping employees complete tasks such as price checking and product finding.

I2 1.png


2.1  多种扫描方式 右.png

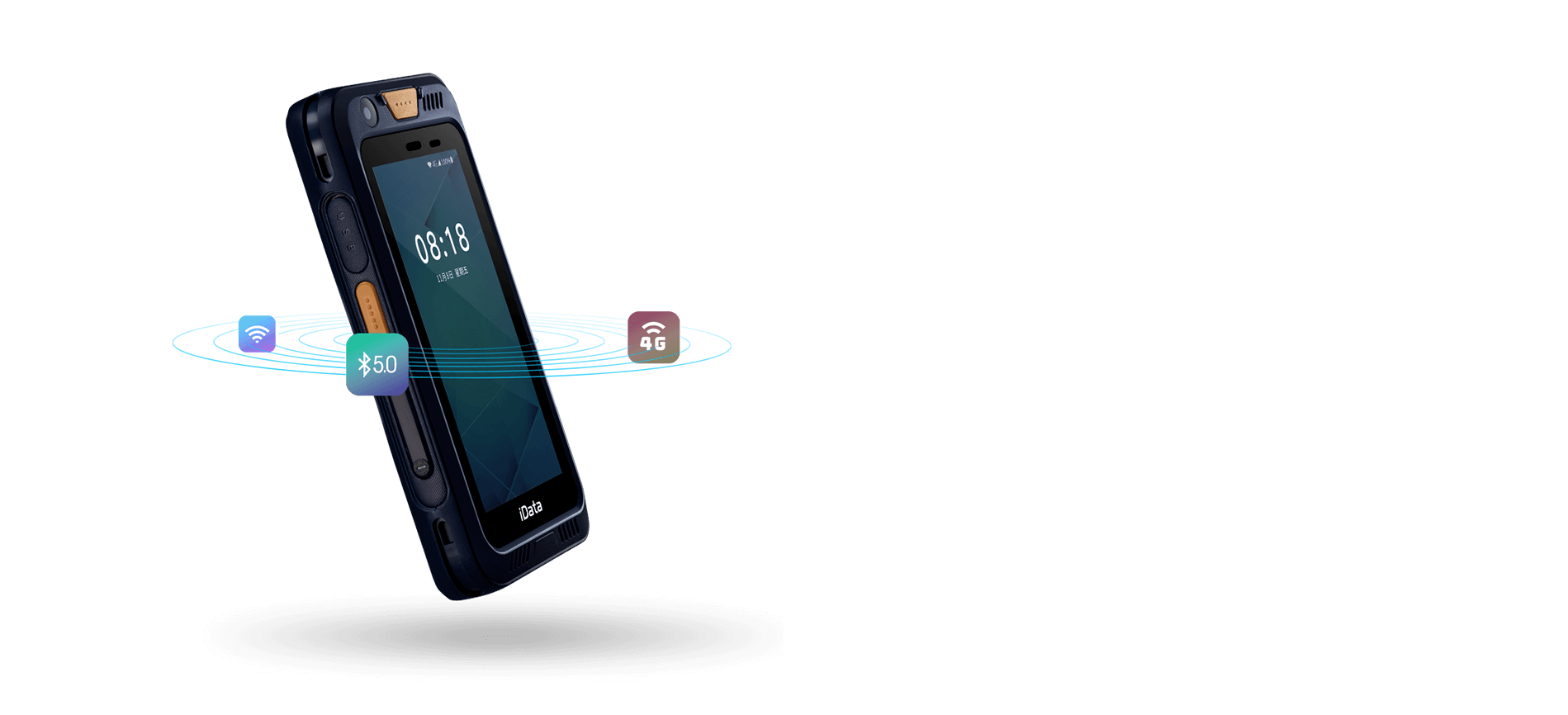

Abundant communication modes

Support 4G communication + dual-band Wi-Fi + Bluetooth 5.0,
so that the device connection is more stable, signal transmission of zero delay,
so that your employees can quickly and stably conduct data transmission.
Eigher the information is obtained by the operator through scanning the code ,
or the message is sent by the manager, which can be received in time to avoid
the loss caused by delay or connection disconnection.the loss caused by delay
or connection disconnection.

4.3   丰富的通讯方式 主体 左.png-2.png

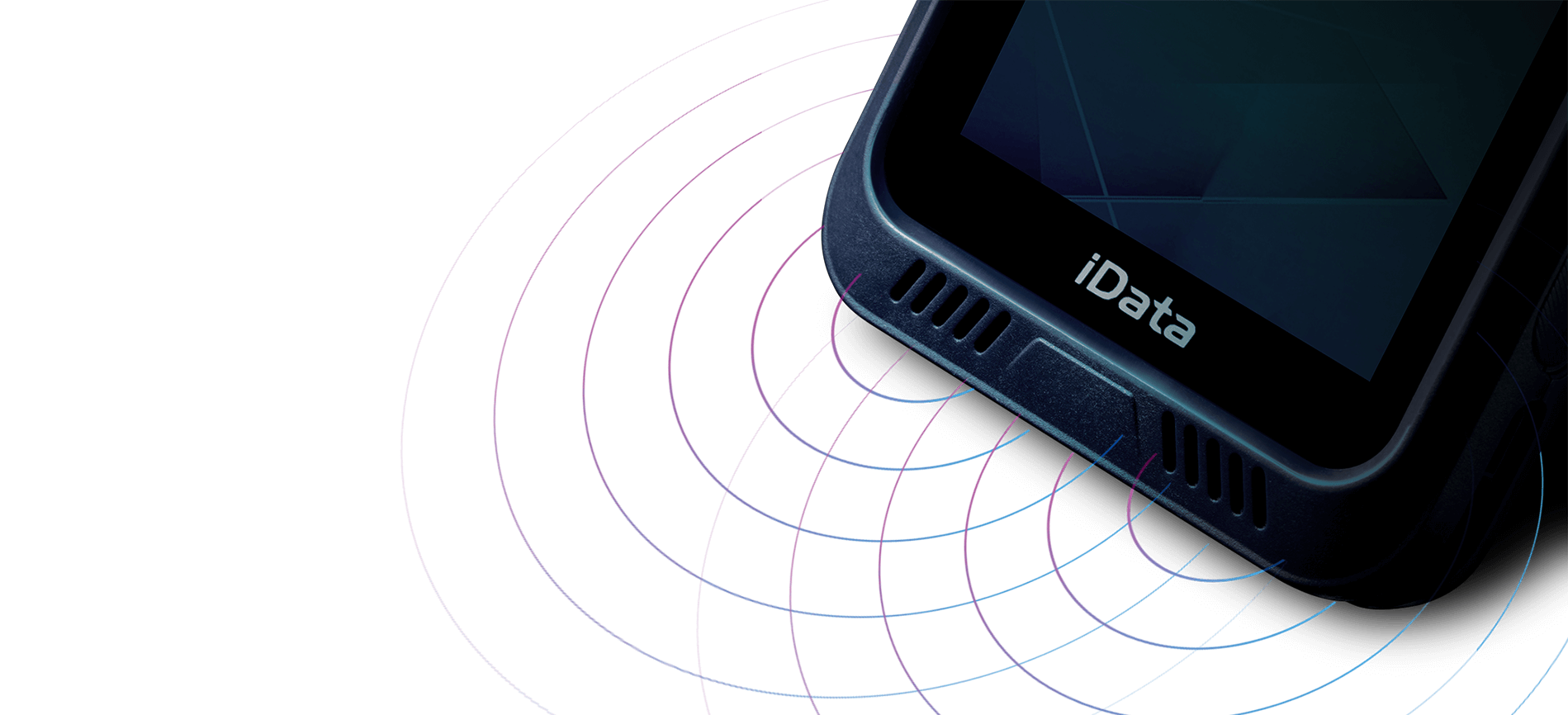

High-power speaker

The design of high-power speaker and exclusive sound chamber can ensure
hat the operators can hear the call of colleagues in any noisy environment,
to avoid the trouble caused by information omission.

4.4  大功率喇叭 右.png-2.png
  • One-key intercom
  • Multiple scanning modes
  • Abundant communication modes
  • High-power speaker

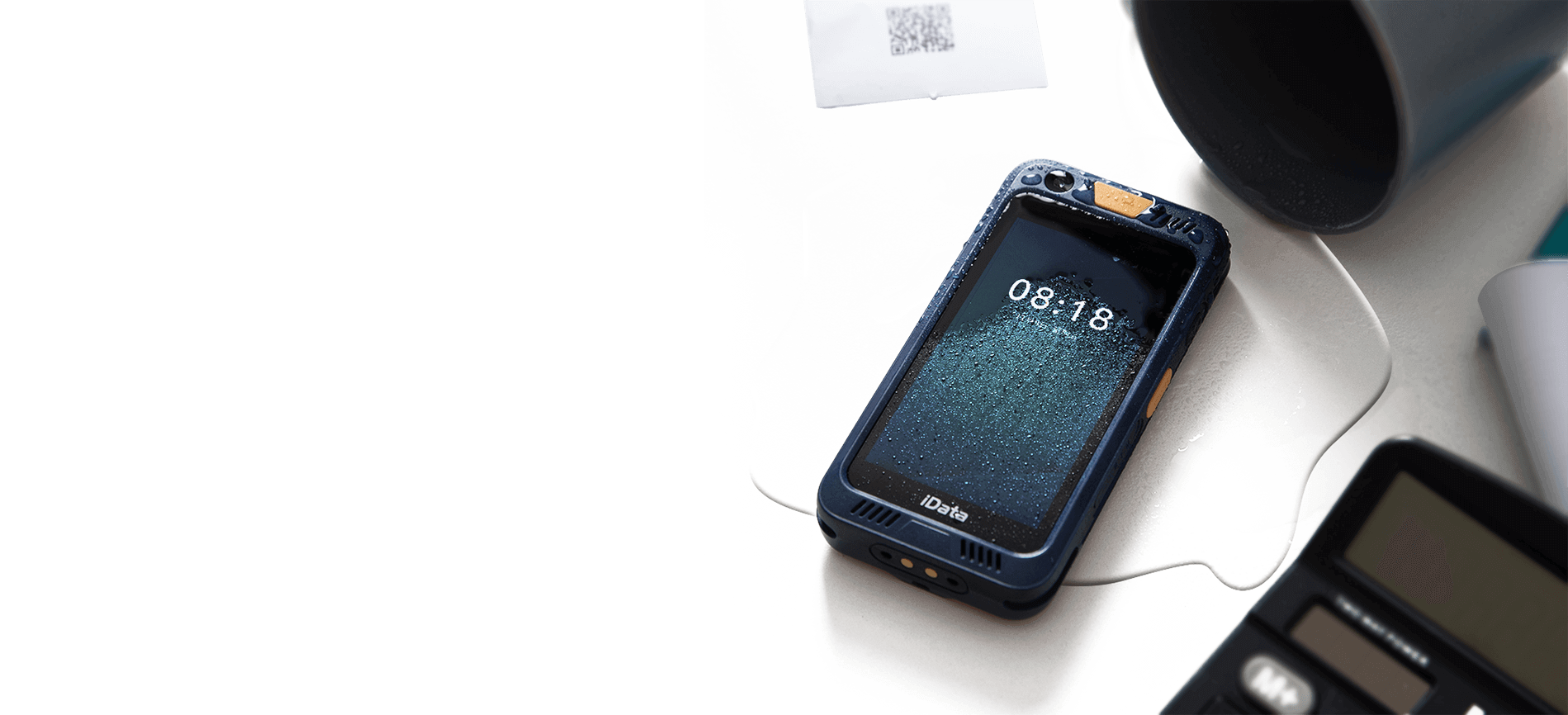

Super durable

IP65 + 1.5 meters of concrete ground of falling for many times, dustproof, waterproof and splash,
so that your employees can not worry about safety of the equipment, and it can be safely used
in a variety of complex and difficult environments,so that your equipment can be used in
a long-term and stable manner, and reduce the cost caused by maintenance and repeated procurement.

4.1 一键对讲 主体 右.png-2.png
  • Super durable

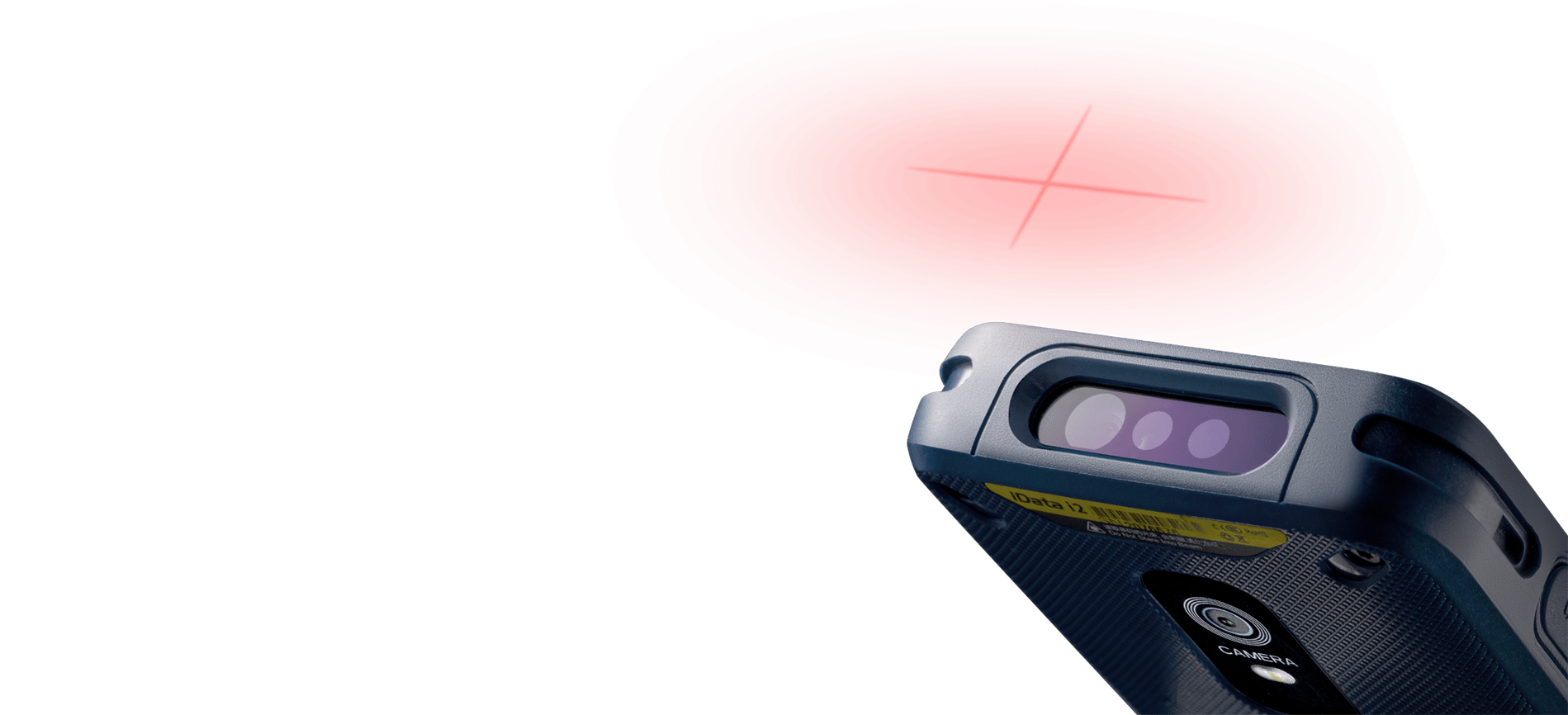

Efficient code scanning

The scanning engine and scanning software self-developed by Idata
can greatly improve the scanning code and decoding efficiency,
and directly improve the efficiency of your enterprise data collection.

4.1 一键对讲 主体 右.png-2.png
  • Efficient code scanning

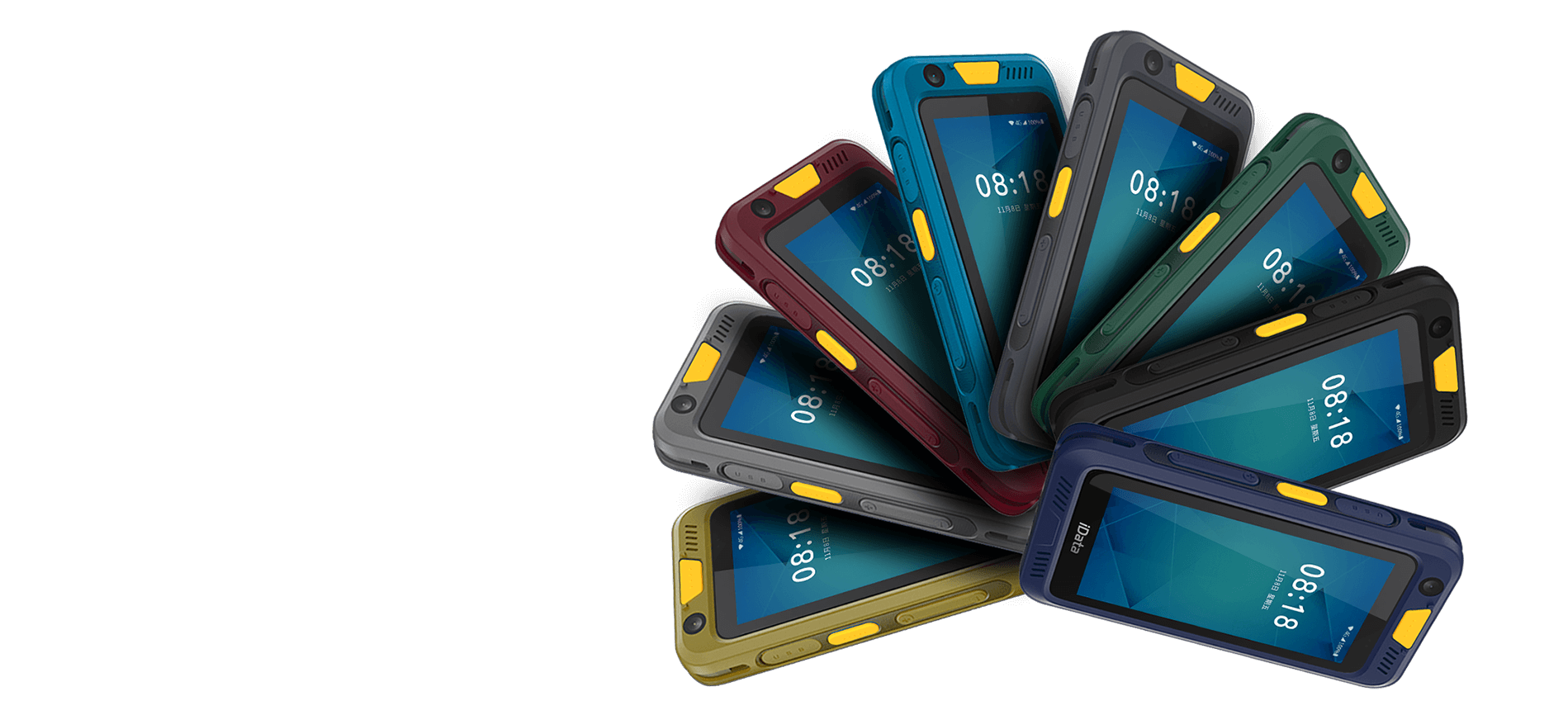

Personalized color matching

A variety of fashional color matching are perfectly integrated into the use scene of your enterprise ,
more fashionable, more beautiful, and which can greatly enhance the brand image of your enterprise.

7   个性化配色 主体 右.png-2.png
  • Personalized color matching

i2 Specifications

System Configuration
Processor Quad-core 2.0 GHz
Operating system Android 10.0
Memory (ROM+RAM) 16GB+2GB
SIM Single SIM card
Display screen 3.5-inch, resolution: 1440*720 pixel
Touch screen Industrial capacitive screen, supporting two-point touch + gesture operation
Camera Rear 8 million pixel camera, front 5 million pixel camera, support auto focus
Flashlight 800mA flashlight
Keyboard A total of 6 keys, front scan*1, side scan key*2, side power key*1, side±volume key*2, support virtual keys
Battery Lithium battery 3.85V power supply, 2000mAh, non-removable
*Executive standard: GB31241-2014
Audio Built-in microphone
Charging Type-C charging and pin port charging, 15W fast charging
Prompts High-power speaker/vibration reminder/LED reminder/audio reminder
Vibrating motor Built-in vibrating motor
Sensor Gravity sensor (G-sensor) / proximity sensor / light sensor
Intercom function (optional) Supporting one-button PTT calls
Structure parameters
Dimension (LxWxD) 117mm*58mm*15.9mm
Weight 140g(Within battery)
Communication transmission
Wireless wide area network
(Network frequency)
Asia & Europe:
2G:B2/B3/B5/B8
3G:WCDMA:B1/B5/B8,TD-SCDMA:B34/B39
4G:FDD-LTE:B1/B3/B5/B7/B8/B20,TDD-LTE:B34/B38/B39/B40/B41
America:
2G:B2/B3/B5
3G:B1/B2/B4/B5
4G:B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41
Wireless wide area network
(Data service)
GSM/GPRS/EDGE/UMTS/HSPA/HSPA+WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE
WLAN Wi-Fi 802.11a/b/g/n/r/ac(2.4G+5G dual-band Wi-Fi), fast roaming ,Wi-Fi 5G PA
Bluetooth Bluetooth 5.0+BLE
GPS GPS/AGPS/Beidou/Galileo/GLONASS/QZSS
Operating Environment
Working temperature -20℃~60℃
*For your safety, please do not charge in a low temperature environment
Storage temperature -40℃~70℃(Without battery)
Humidity 0%~95% (no condensation)
Drop specification 1.5m concrete floor dropped several times
Environmental Parameter
Roller Drop Specification 1000 times of roller drops from a height of 1 meters
Ingress Protection IP65
ESD Protection ±15KV (air discharge), ±8KV (contact discharge)
Scan engine
Barcode Support 1D/2D scanning engine
Scanning accuracy ≥3.33mil
Scanning angle Tilt ±60°, deflection ±60°, rotation 360°
Angular Field of View Horizontal: 44.3°; Vertical: 28.4°; Diagonal: 51°
Motion tolerance 8m/s
NFC (Optional)
Frequency 13.56MHz
Reading distance 60mm以内
Communication protocol ISO14443A/14443B/15693
Input/output Interface
USB interface Type-C (with earphone function) *1
NFC (Optional)
OTG interface Supporting
Development support
Development language Java
API iScan API (Scan Development Kit), Device API (Device Management/Configuration Development Kit), Android standard interface
Development tool Eclipse/Android Studio
Accessories
Standard accessories USB cable*1, hand strap*1
Optional accessories power adaptor,charging cable,single cradle,iRing
Note
1 Due to irregular updates of the product line, the content is subject to change without notice.
