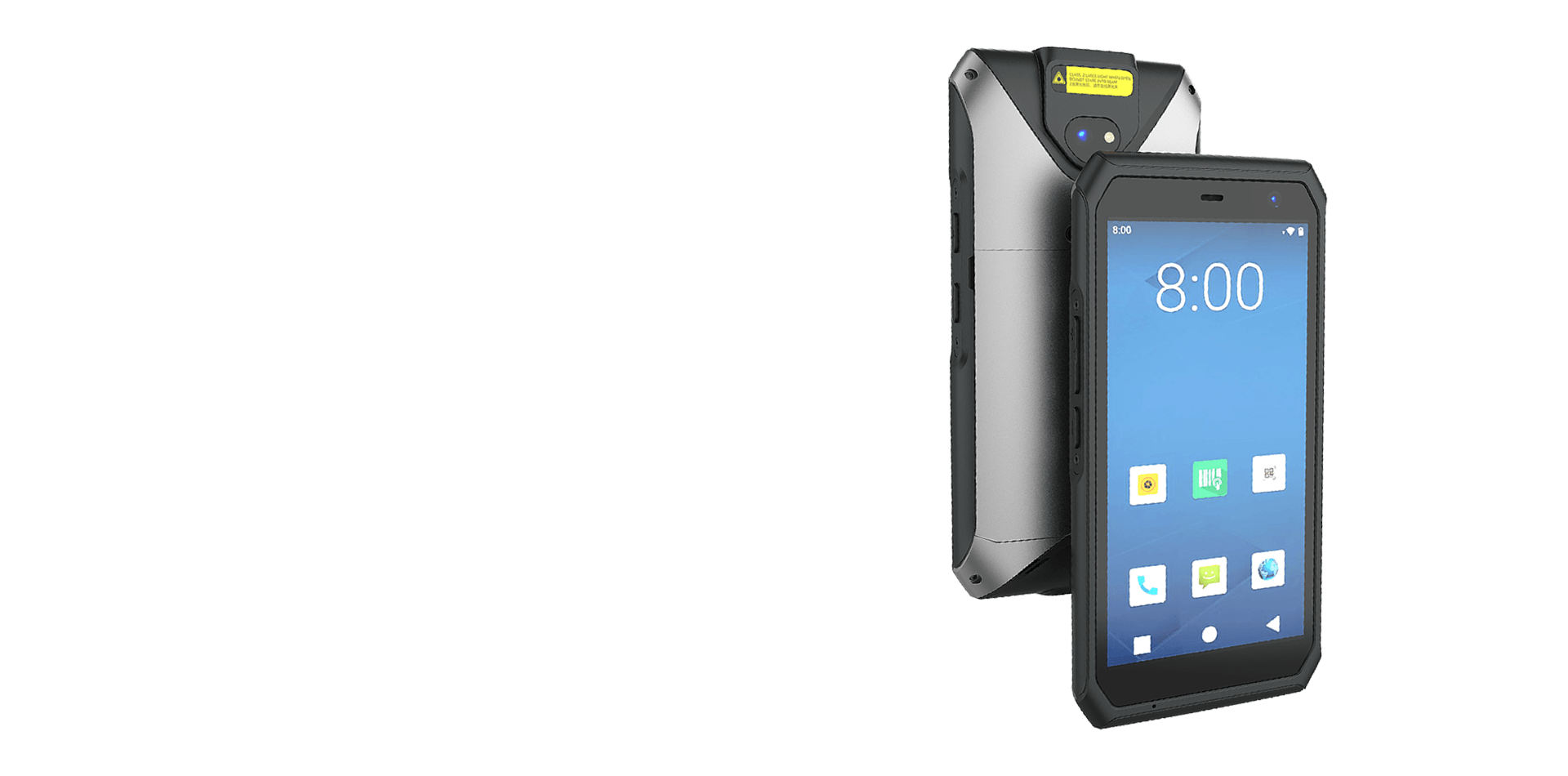

iData T3

Enterprise-level Smart Terminal


Sharpen Enterprise Workers’ Competitive Edges

1 主体靠右.png

Master Usage Method
Without Any Training

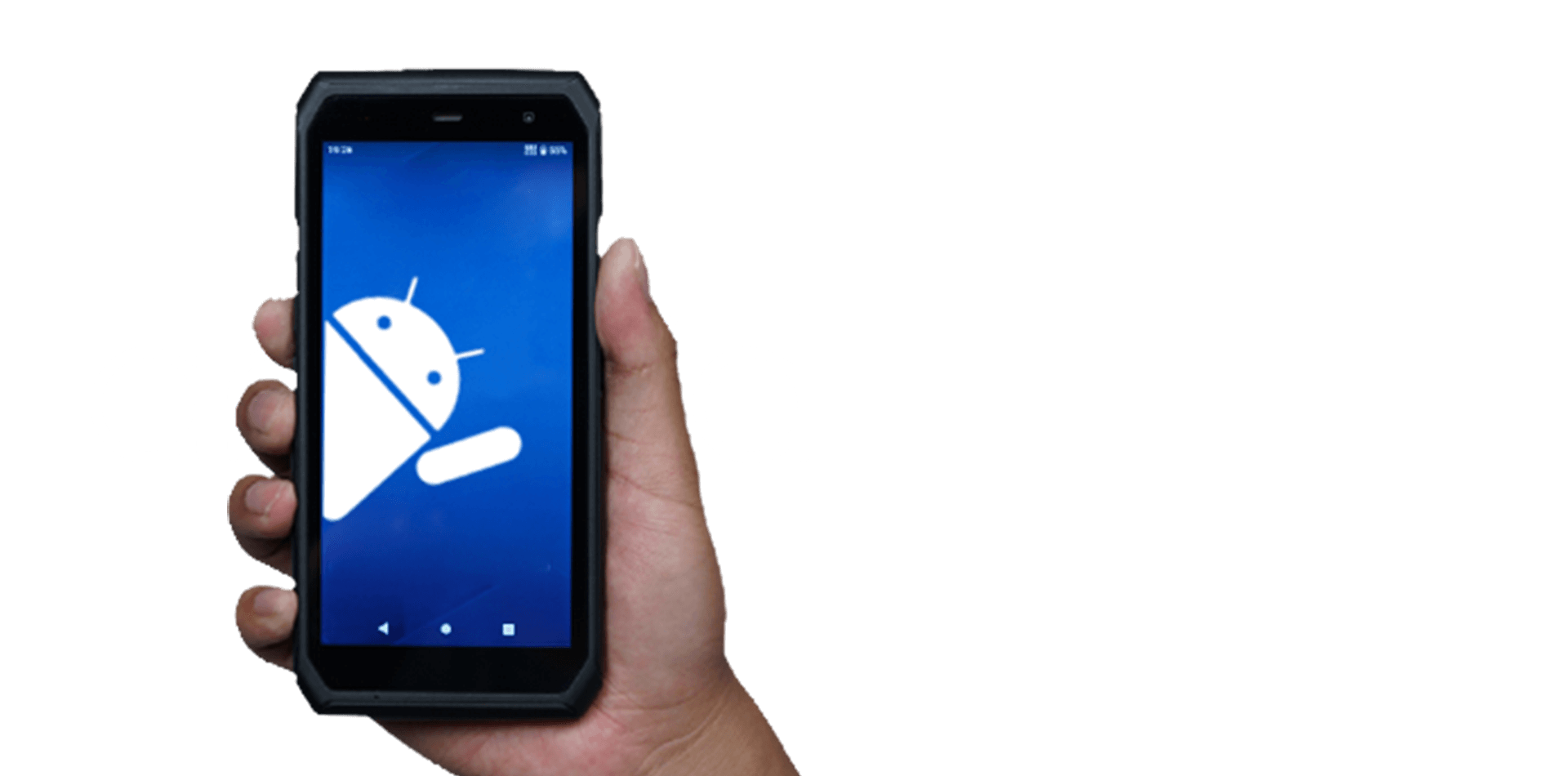

Industry-leading Android 11.0,
Front-line Workers Enjoy Trending Smart Phone Usage Experience

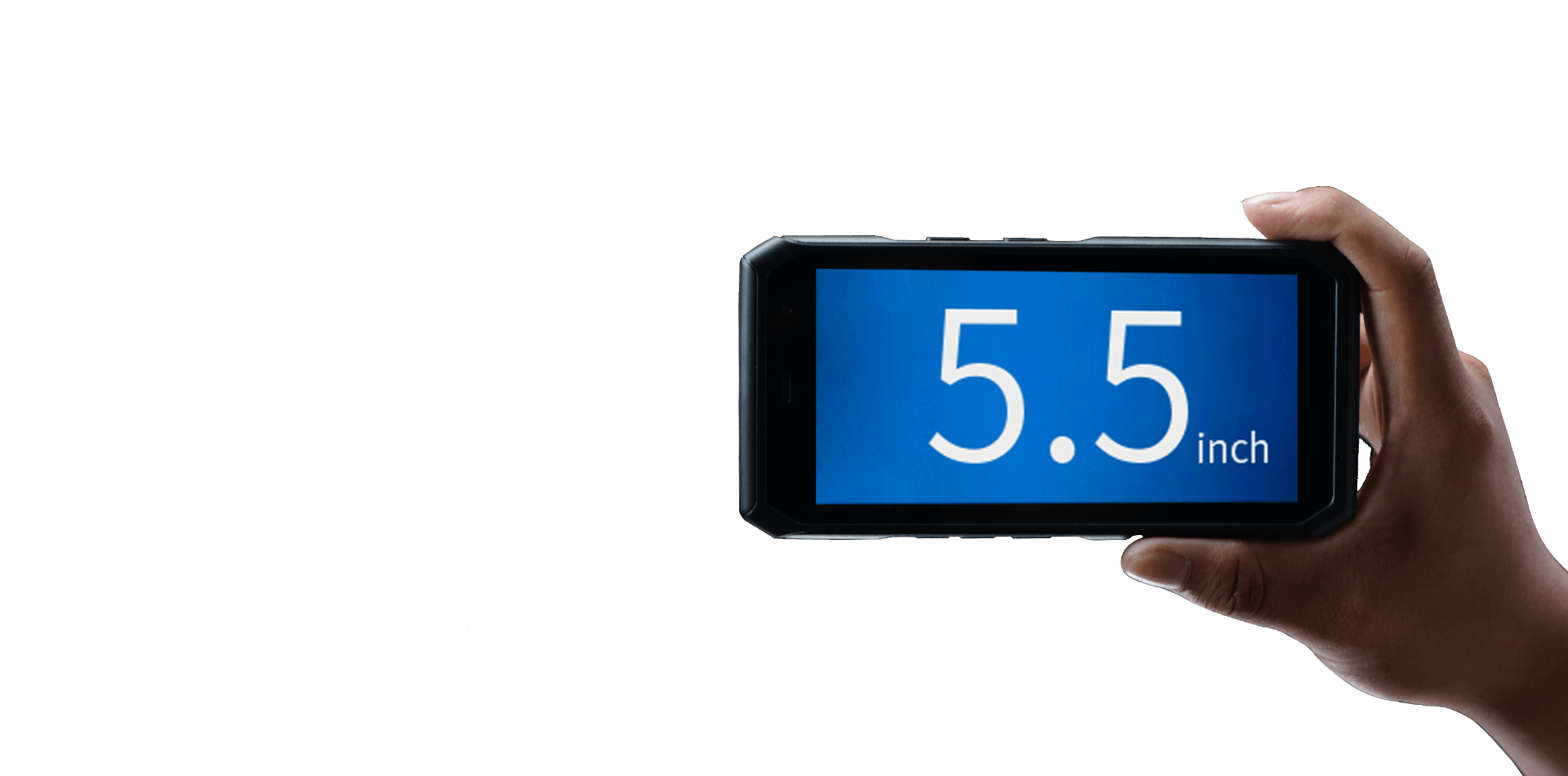

HD Big Screen,
Acquire a More Intuitive Interactive Experience

5.5-inch HD Screen Provides Sufficient Room for Both Reading and Touch Control Interaction
The Screen Is Clearly Visible Even Under Direct Sunlight Outdoors.

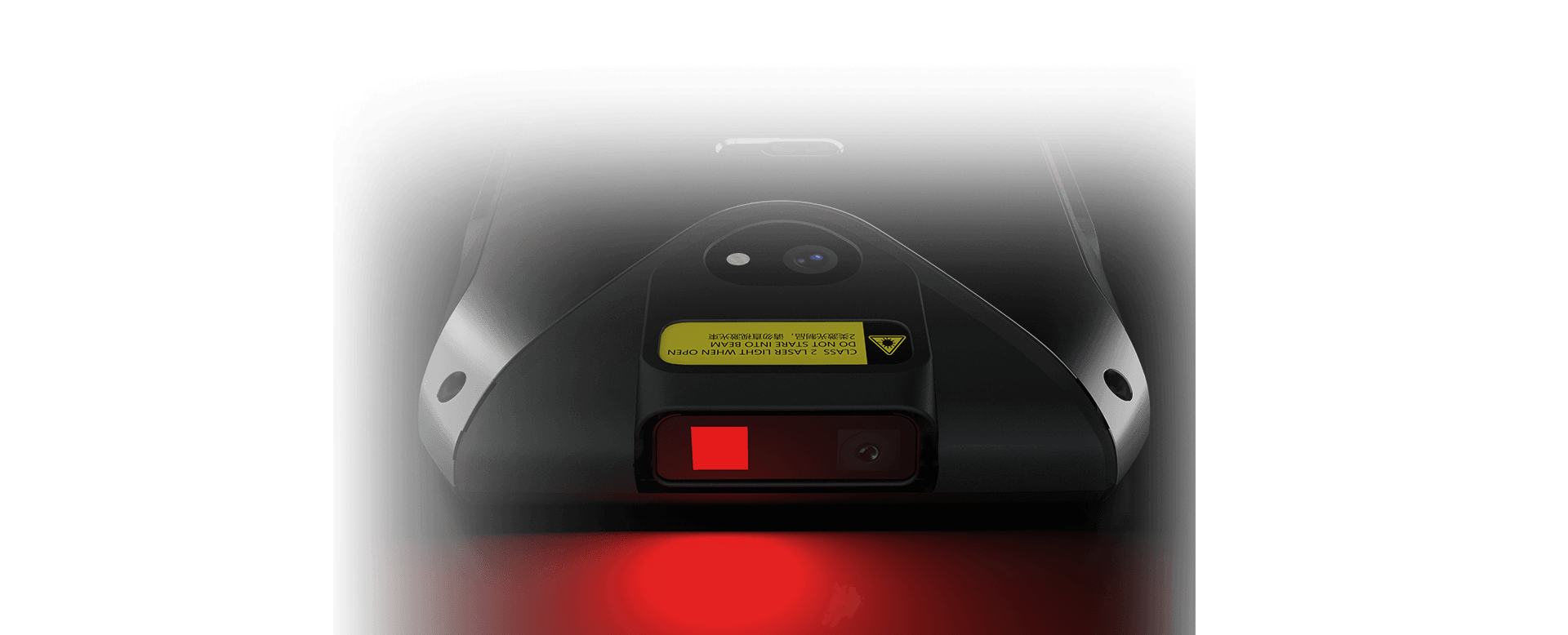

Enterprise-Level Data Capture Capacity, Sharpening Competitive Edges

Powerful Scan Engine, Capture Almost All One/Two Dimension(s) Barcodes Rapidly.
Equipped With a 13 Megapixels Rear Camera, It Can Take Pictures of Goods, Receipt etc. Clearly.

主体 整屏.png

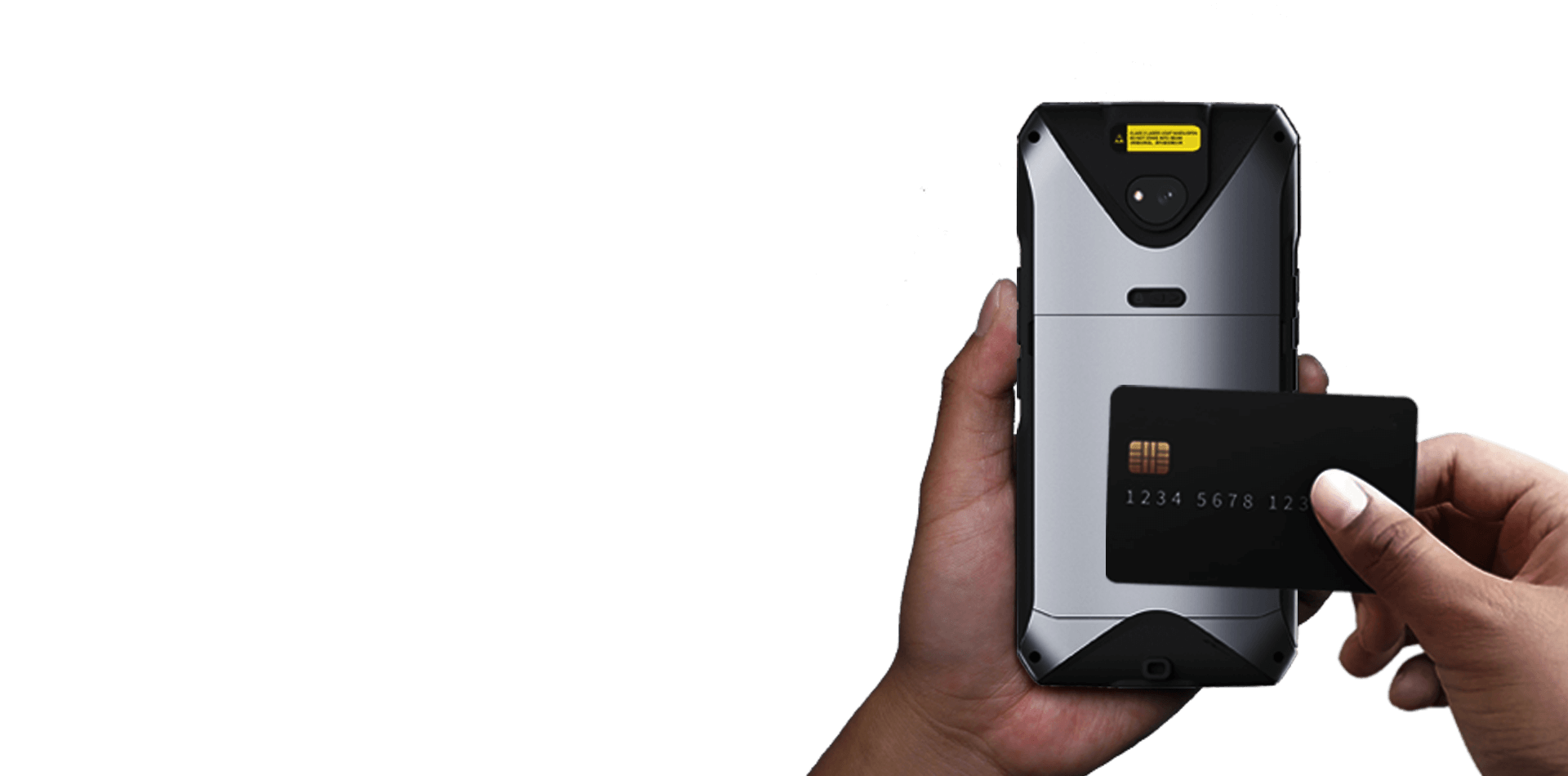

Card Reading Ability Through NFC

Read Information Quickly on All Kinds of Cards, Such As ID Cards, Membership Cards, Bus Cards,
Access Cards So That It Could Handle Verification of Different ID and Membership, or Payment Issues.

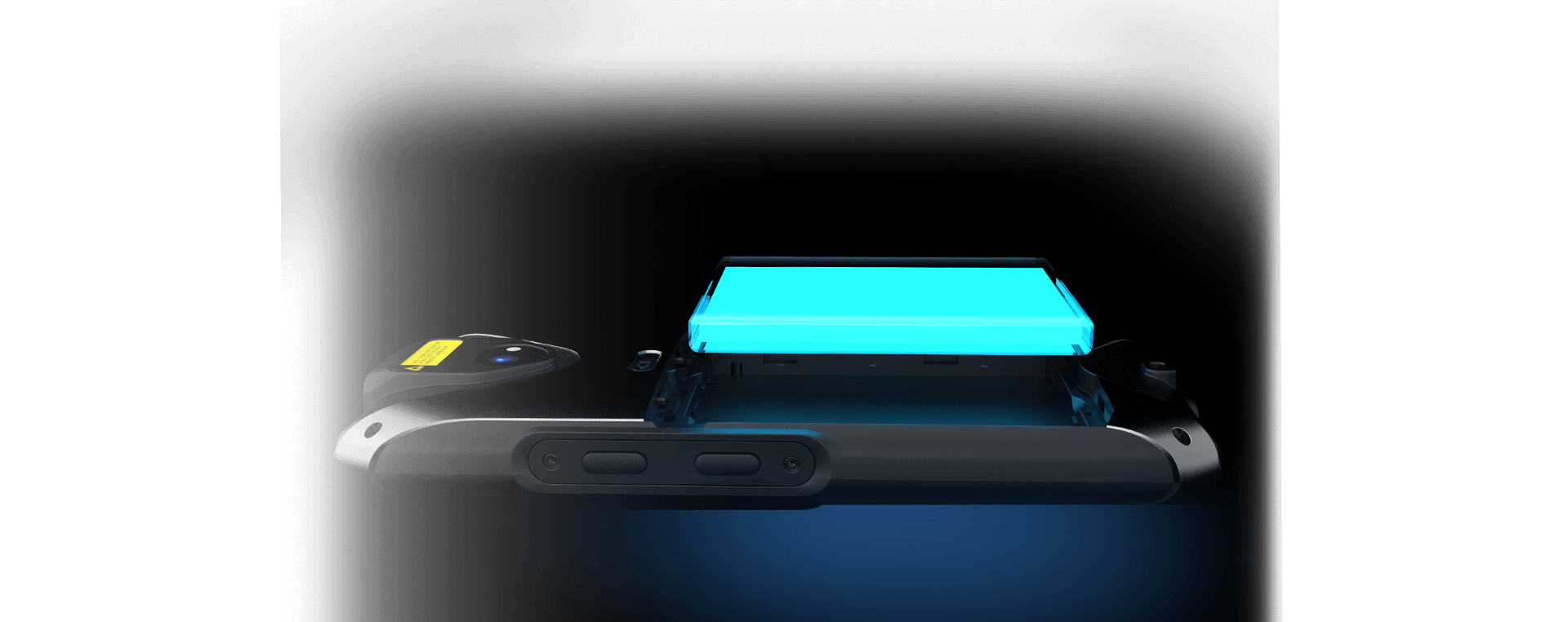

Survives Long-time Working Outdoors

With a 4650mAh Big Battery, It Can Easily Lasts a Whole Shift.
It Can Work Continuously Without Suspending Your Work To Replace Battery.

主体 整屏.png

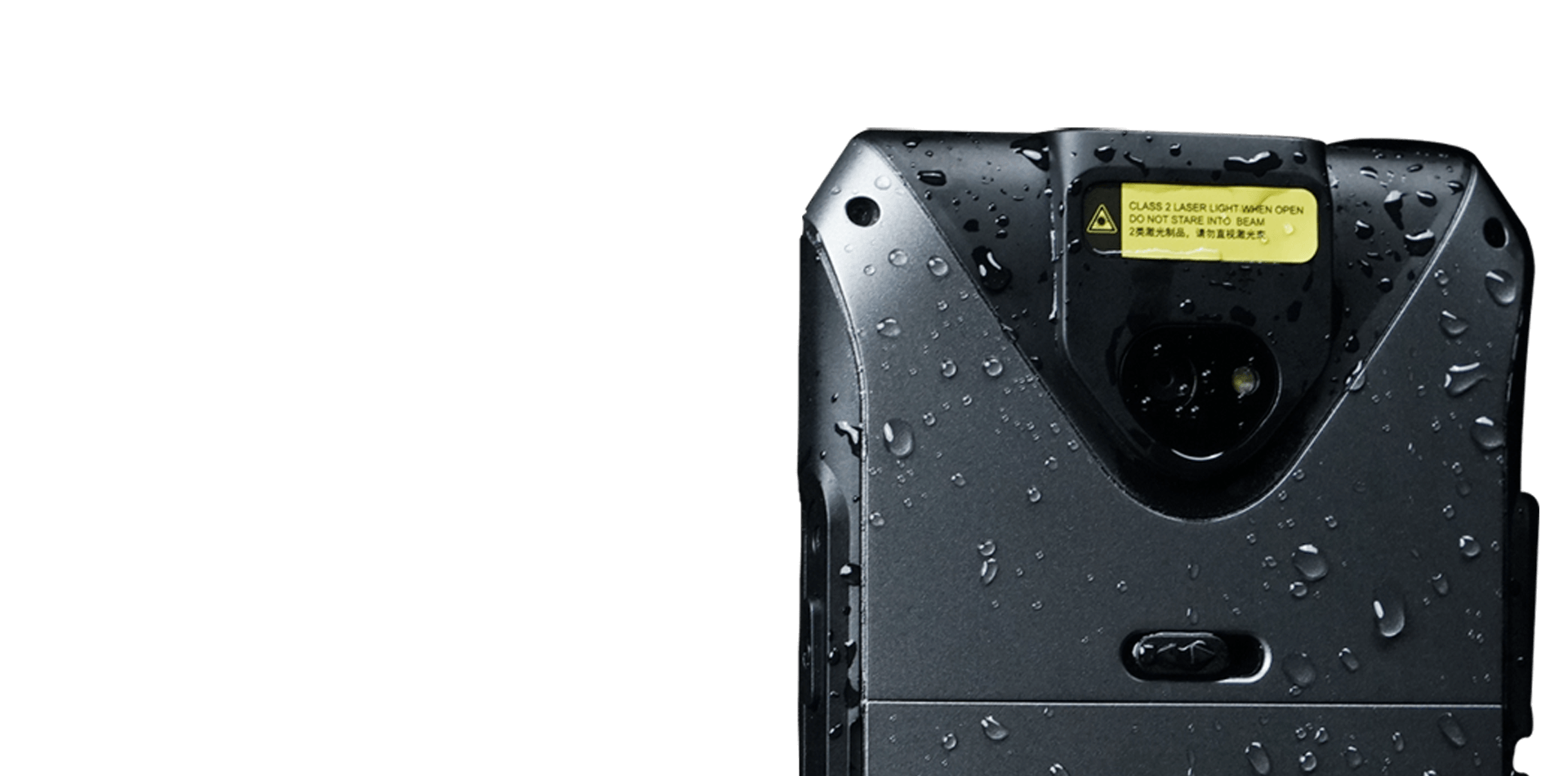

Meet Protection Requirements In Frequent-changing Environments

IP655 Protection Enables Your Workers To Work In Different Weather Conditions.
It Lowers the Rate of Product Failure, Eliminating Loss Caused by Device Downtime.


T3 Specifications

System Configuration
Processor Octa-core 2.0GHz high-performance processor
Operating System Android 11.0
Memory (ROM + RAM) 64GB + 4GB (standard)
SIM Two out of three SIM card slots, support dual SIM and dual standby
* Two out of three SIM card slots: two cards can be held at the same time, Nano SIM card + Nano SIM card /Nano SIM card +TF card
Expansion Slot Micro SD card (up to 256 GB)
Display Screen 5.5-inch, resolution: 1440*720 pixels IPS HD screen
Touch Screen Industrial capacitive screen, support wet-hand operation/glove mode/multi-touch/gesture operation
Camera 13 megapixels of rear camera, 2 megapixels of front camera, support auto-focusing
Flashlight 1A flashlight
Keypad 5 keypads in total: scan key *2, power key *1, ±volume key *2
Battery 4.35V lithium battery, with 4650mAh, detachable, with backup battery
*Execution standard: GB31241-2014
Audio Built-in microphone
Charging Method Type-C charging , support 9V/2A, 5V/3A fast charging
Reminder High-power speaker/Vibration reminder/LED reminder
Vibrating Motor Built-in vibrating motor
Sensors G-sensor/ Proximity sensor/Light sensor
Intercom Function (Optional) Support one-button PTT calls
Structure Parameter
Dimension (L*W*D) 162.2mm*78.5mm*15mm
Weight 258g (including the battery)
Communication Transmission
WWAN
(Network Frequency)
Chinese version:
2G: B2/B3/B5/B8
3G: WCDMA: B1/B5/B8, TD-SCDMA: B34/B39
4G: FDD-LTE: B1/B3/B4/ B5/B7/B8, TDD-LTE: B34/B38/B39/B40/B41
WWAN
(Data Service)
GPRS/EDGE 3G/GSDPA 42.2M/HSUPA 11.5M/LTE-DL 150 Mbps/UL 50 Mbps
WLAN Function Wi-Fi 802.11 /a/b/g/n/ac/d/e/h/i/j/k/r/v/w (2.4G + 5G dual-band Wi-Fi)
Bluetooth Bluetooth 5.0, support BLE
GPS GPS/AGPS/ BDS/Galileo/GLONASS/QZSS
Environmental Parameter
Working
Temperature
-20℃ - 50℃
*Do not charge under low temperature conditions for the safety concerns
Storage
Temperature
-40℃ - 70℃
Humidity 0 - 95% (no moisture condensation)
Drop Specification Multiple drops to concrete floor from the height of 1.5m
Environmental Parameter 500 times circulation (1000 times) of roller drops from a height of 0.5 meter
Ingress Protection IP65
ESD Protection ±15KV (air discharge), ±8KV (contact discharge)
Scanning Engine
Barcode Type It can scan one-dimensional / two--dimensional barcodes
Scanning Accuracy ≧3.33mil
Scanning Angle Pitch: ±60°; Skew:±45°; Tilt:360°
View Angle Horizontal:44.3°,Vertical:28.4°,Diagonal:51°
Motion Error Tolerance 8m/s
NFC (Optional)
Working Frequency 13.56 MHz
Reading Distance Within 35 mm
Communication Protocol ISO14443A/14443B/15693
Communication Interface
USB Interface Type-C (with headset function) *1
OTG Interface Support
Development Support
Programming Language Java
Development API iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits), Android Standard Interface
Development Tool Eclipse/Android Studio
Accessories
Accessories (standard) USB cable*1, power adapter*1, hand strap*1
Accessories (optional) 4-slot battery charging cradle
Note
1 Due to irregular updates of the product line, the content is subject to change without notice.
