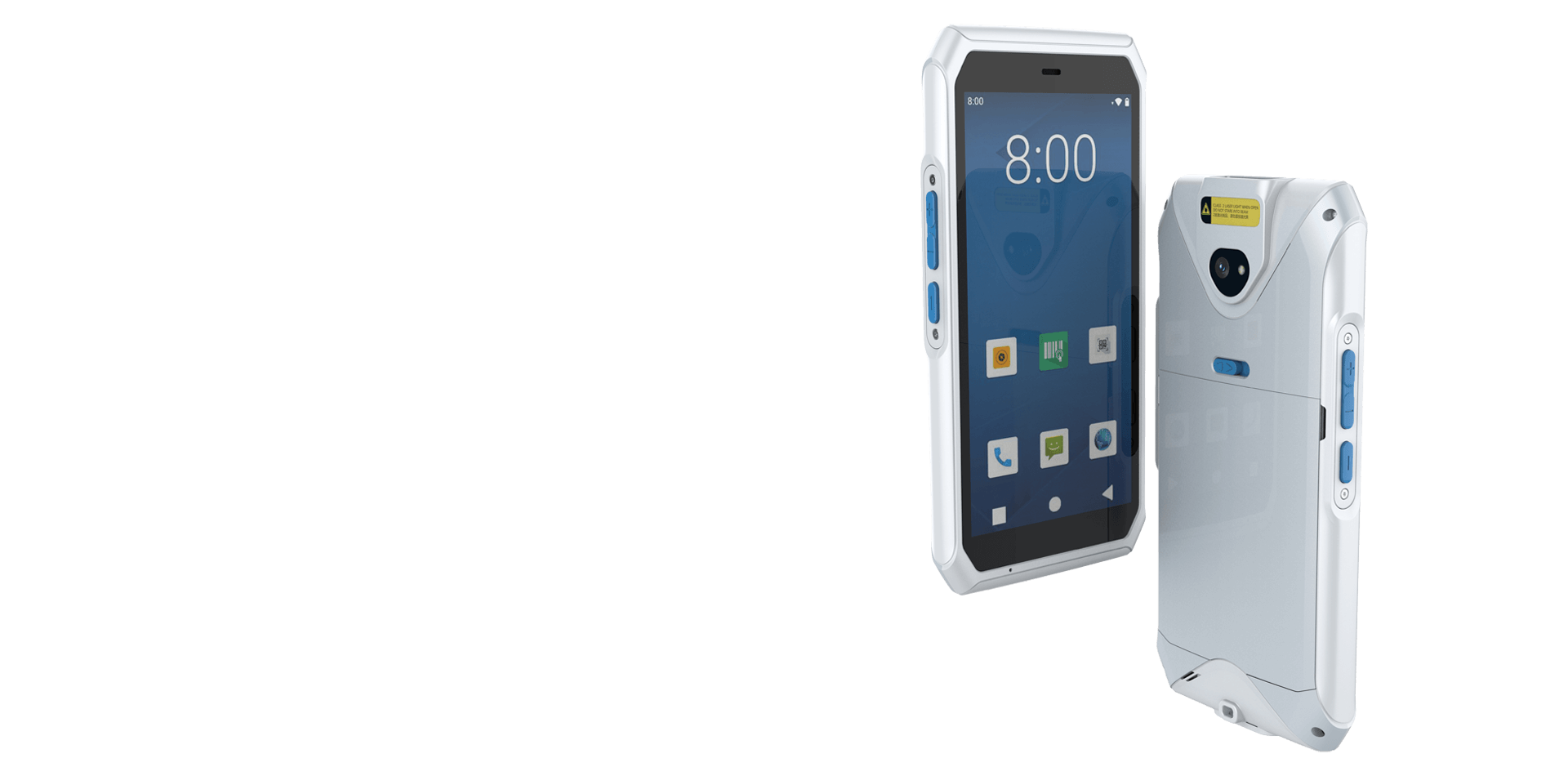

T3HC

iData T3HC

New Generation Android Medical Terminal

Advanced technologies, powerful medical mobile working station


Easy-to-operate, apply to work right away

Industrial-leading Android 11.0 system, the medic workers can enjoy
the same using experience as any other mainstream smartphones
experience as any other mainstream smartphones


HD big screen, quick access to patient information

The 5.5-inch HD screen provides excellent interaction space for both reading and touch control.
The patient information can be shown clearly without flipping pages


High-level scan engine to help boost efficiency

The scan engine is dedicated to medical application. It can scan all kinds of
barcodes on the curved or uneven surfaces, including wristbands, infusion
bags, drugs, test tubes, consumables and assets, etc.


Mobile medical working can be achieved by NFC reading

Rapid information capture of all kinds of cards, including healthcare cards, ID cards,
social insurance and welfare cards, etc. ID card verification, hospital registration,
illness condition inquiry and bills payment can be fulfilled by the device.


Mobile nursing can be improved by high-quality pictures and videos

The 13 megapixels rear camera can record virtually
every details of the patient, which provides solid
support for nursing plans made by medical teams


Stay in touch with medical team 24/7

WiFi and 4G network options are available, the optimized one can be obtained based on
different situations, such as working indoor or in the fields, operating in the outpatient
areas, wards, warehouses or inspecting rooms, etc.


Survive continuous use between shifts

The 4650mAh big battery design can meet great demand of an entire shift.
No need to suspend work while replacing the battery under the hot-swap mode


Wear-resistant to repetitive wash by medical disinfectant

The medical erosion resistant housing can withstand repetitive wipe
or wash by medical cleaner, such as alcohol and hydrogen peroxide.
Thanks to the good sealing, the medical workers can clean it
confidently to ensure bacteria-free standard for equipment.


T3HC Specifications

System Configuration
Processor Octa-core 2.0GHz high-performance processor
Operation System Android 11.0
Memory (ROM+RAM) 64GB+4GB (standard)
SIM Two out of three SIM card slots, support dual SIM and dual standby
* Two out of three SIM card slots: two cards can be held at the same time, Nano SIM card + Nano SIM card /Nano SIM card +TF card
Expansion Slot Micro SD card (up to 256GB)
Screen 5.5 inches, resolution 1440*720 IPS HD screen
Touch Screen Industrial capacitive screen, support wet-hand operation/glove mode/multi-touch/gesture operation
Camera 13 megapixels of rear camera+auto-focusing, 2 megapixels of front camera
Flashlight 1A flashlight
Keypad scan key*2, power key*1, ±volume key*2
Battery 4.35V lithium battery, with 4650mAh, detachable,backup battery support
*Execution standard: GB31241-2014
Audio Built-in dual microphone
Charging Method Type-C charging support fast charging 9V/2A, 5V/3A
Reminder High-power speaker/Vibration reminder/LED reminder
Vibration Motor Built-in vibration motor
Sensors G-sensor/ Proximity sensor/Light sensor
Intercom Function
(Optional)
Support one-button PTT calls
Structure Parameter
Dimension(H*W*D) 162.2mm *78.5mm *15mm
Weight 258g (including the battery)
Communication Transmission
WWAN
(Network Frequency)
Chinese & Eurasian Version
2G:B2/B3/B5/B8
3G: WCDMA: B1/B5/B8, CDMA BC0, TD-SCDMA: B34/B39
4G: FDD-LTE: B1/B3/B5/B7/B8/B20, TDD-LTE: B34/B38/B39/B40/B41
WWAN
(Data Service)
GPRS/EDGE 3G/GSDPA 42.2M/HSUPA 11.5M/LTE-DL 150 Mbps/UL 50 Mbps
WLAN Function Wi-Fi 802.11a/b/g/n/ac/d/e/h/i/j/k/r/v/w (2.4G+5G dual-band Wi-Fi)
Bluetooth Bluetooth 5.0, support BLE
GPS GPS/Glonass/BDS/AGPS/Galileo/QZSS
Environmental Parameter
Working Temperature -20℃~60℃
*Do not charge under low temperature conditions for the safety concerns
Storage Temperature -40℃~70℃ (without the battery)
Humidity 0 - 95% (no moisture condensation)
Drop Specification Multiple drops to concrete floor from the height of 1.5m
Roller Drop
Specification
500 times of roller drops from a height of 0.5 meters
Ingress Protection IP65
Ingress Protection IP65
Protection ±15KV (air discharge), ±8KV (contact discharge)
Scanning Engine
Barcode Type It can scan one-dimensional / two--dimensional barcodes
Scanning Accuracy ≥3.33mil
Scanning Angle Pitch: ±60°; Skew:±45°; Tilt:360°
View Angle Horizontal:44.3°,Vertical:28.4°,Diagonal:51°
Motion Error Tolerance 8m/s
NFC (Optional)
Working Frequency 13.56MHz
Reading Distance Within 35mm
Communication Protocol ISO14443A/14443B/15693
Communication Interface
USB Interface Type-C (with headset function)
OTG Interface Support
Development Support
Programming
Language
Java
Development API iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits), Android Standard Interface
Development Tool Eclipse/Android Studio
Accessories
Standard Accessories USB cable*1, power adapter *1, hand strap *1
Optional Accessories 4-slot battery charging cradle
Note
1 Due to irregular updates of the product line, the content is subject to change without notice.
2 4G/5G version available.Kindly download product leaflet for detailed product parameters.
