P1

Industrial tablet

Together, we make it stronger

1 主图主体 右边.png

Industry-leading edges

主体靠下-en.png12_画板 1 副本 3.png

Various interface options


Various accessories special for different situation

主体靠下11111_画板 1 副本 2-en.png

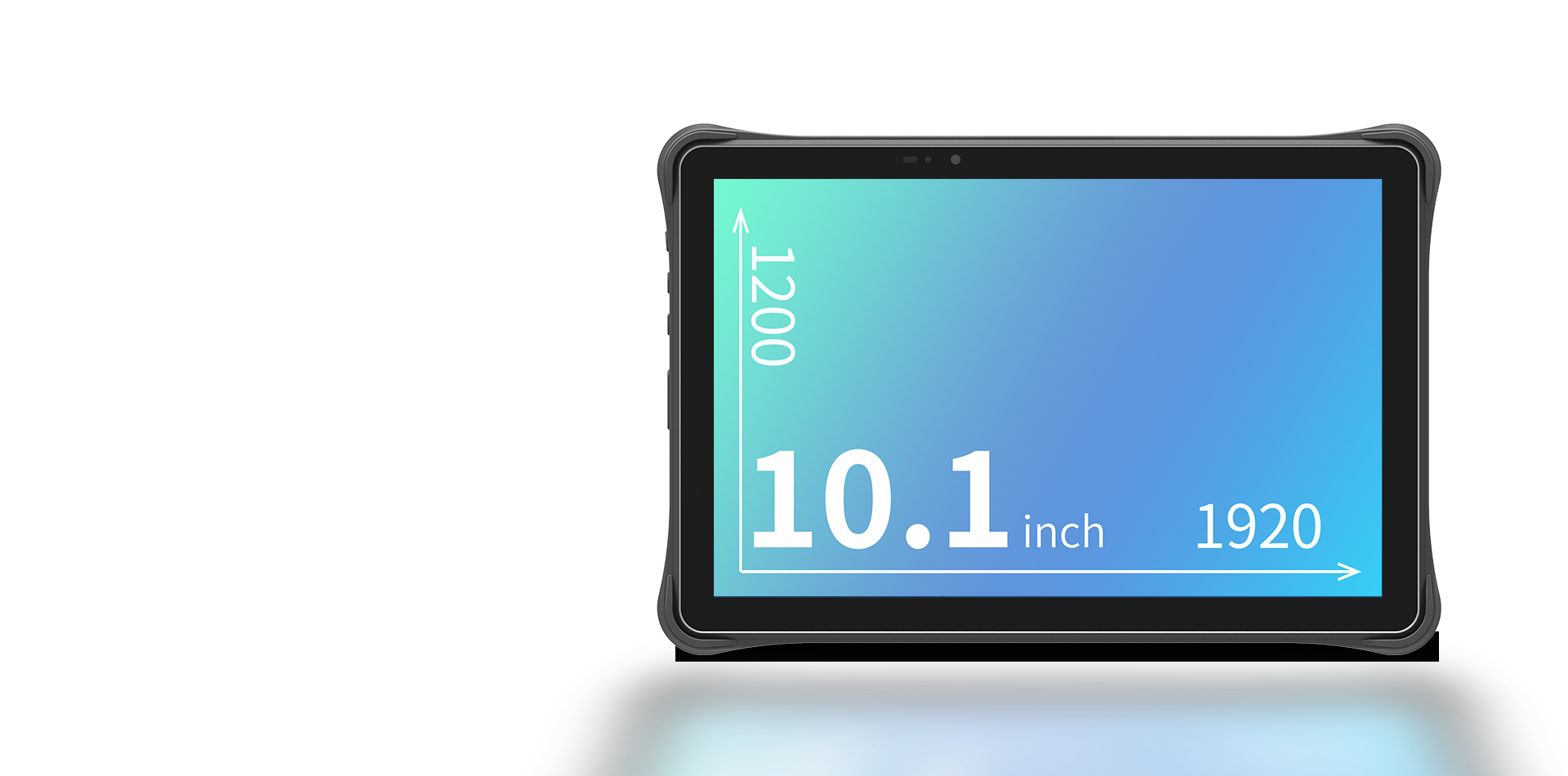

HD big screen, information acquiring becomes easier

With a 10.1-inch HD big screen, resolution 1920*1200,
data charts can be read within one page, multi-tasking is compatible
The 3rd generation of CORNING Gorllia Glass is durable and anti-scratch.

5超清大屏,一览无遗2 拷贝.png

Ultra-thin but convenient

Only 14.9mm in thickness, this ultra-thin device can be easily put into the bag,
easy to carry, easy to install and fix on the bracket, and easy to disassemble.


Faster Barcode Scanning

New self-developed scanning engine supports reading of one dimension/two dimensions barcodes,
including all kinds of cured, wrinkled, damageed, and dirty barcodes.


Industrial protection standards, easy to face challenges

IP65 + 1.2 meter concrete impact resistant. Users can enjoy a worry-free experience because of
the sturdy protection for the whole machine, which is in line with industrial protection standards;


Large removable battery, always on line

With a 10000 mAh large removable battery, plus 1000 mAh built-in backup power,
the device can work for more than 14 hours continuously.
There’s no need to restart while replacing batteries.


Click to view certification details

aer
soti

P1 Specifications

System Configuration
Processor Octa-core 2.0GHz high-performance processor
Operating System Android 11, Android 13(GMS)
Memory (ROM+RAM) 64GB + 4GB (standard)
SIM Two out of three SIM card slots, support dual SIM and dual standby
** Two out of three SIM card slots: two cards can be held at the same time, Nano SIM card + Nano SIM card /Nano SIM card +TF card
Expansion Slot Micro SD card (up to 256 GB)
Display Screen 10.1-inch, resolution: 1920*1200 pixels
Touch Screen Industrial capacitive screen, support wet-hand operation/glove mode/multi-touch/gesture operation
Camera 13 megapixels rear camera, support auto-focus/PDAF; 8 megapixels front camera
Flashlight 800mA flashlight
Keypad 4 keypads in total: scan key *1, power key *1, volume key*2
Battery 3.85V lithium battery, with 10000mAh, detachable, back-up battery support
Audio Built-in dual microphone
Charging Method Type-C charging and pin-port charging, support 18W fast charging
Reminder Vibration reminder/LED reminder/high power speaker/Audio reminder
Vibrating Motor Built-in vibrating motor
Sensor G-sensor/Proximity Sensor/Light sensor/Geomagnetic sensor/ Gyroscope
Intercom Function (Optional) Support one-button PTT calls
Structure Parameter
Dimension (H*W*D) 244.8mm *163.6mm *14.9mm
Weight 879g (including the battery)
Communication Transmission
WWAN (Network Frequency) 2G:B2/B3/B5/B8
3G:WCDMA:B1/B2/B5/B8
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/B20/B28A/B28B/B34/B38/B39/B40/B41
WWAN (Data Service) GSM/GPRS/EDGE/UMTS/HSPA/HSPA+/WCDMA/TDD-LTE/FDD-LTE
WLAN Function Wi-Fi 802.11a/b/g/n/r/ac (2.4G + 5G dual-band Wi-Fi)
Bluetooth Bluetooth 5.0
GPS GPS/AGPS/BDS/Galileo/GLONASS
Environmental Parameters
Working Temperature -10℃ - 50℃
*Do not charge under low temperature conditions for the safety concerns
Storage Temperature -30℃ - 70℃(battery not included)
Humidity 10% - 95% (no moisture condensation)
Drop Specification Multiple drops to concrete floor from the height of 1.2m
Roller Drop Specification 300 times of roller drops from a height of 0.5 meter
Ingress Protection IP65
ESD Protection ±15KV (air discharge), ±8KV (contact discharge)
Scanning Engine
Barcode Type It can scan one-dimensional / two--dimensional barcodes
Scanning Accuracy ≥3.33mil
Scanning Angle Pitch: ±60°; Skew:±45°; Tilt:360°
View Angle Horizontal:44.3°,Vertical:28.4°,Diagonal:51°
Motion Error Tolerance 8m/s
NFC (Standard)
Working Frequency 13.56 MHz
Reading Distance Within 60 mm
Communication Protocol ISO14443A/14443B/15693
Communication Interface
USB Interface Type-C (with headset function) *1, Type-A USB 2.0 *1, Micro HDMI interface *1
OTG Interface Support
Development Support
Programming Language Java
Development API iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits), Android Standard Interface
Development Tool Eclipse/Android Studio
Accessories
Standard Accessories USB cable*1, device-back strap *1, power adapter*1, battery*1
Optional Accessories Charging dock, extension dock, protective film
Note
****** Due to irregular updates of the product line, the content is subject to change without notice.
