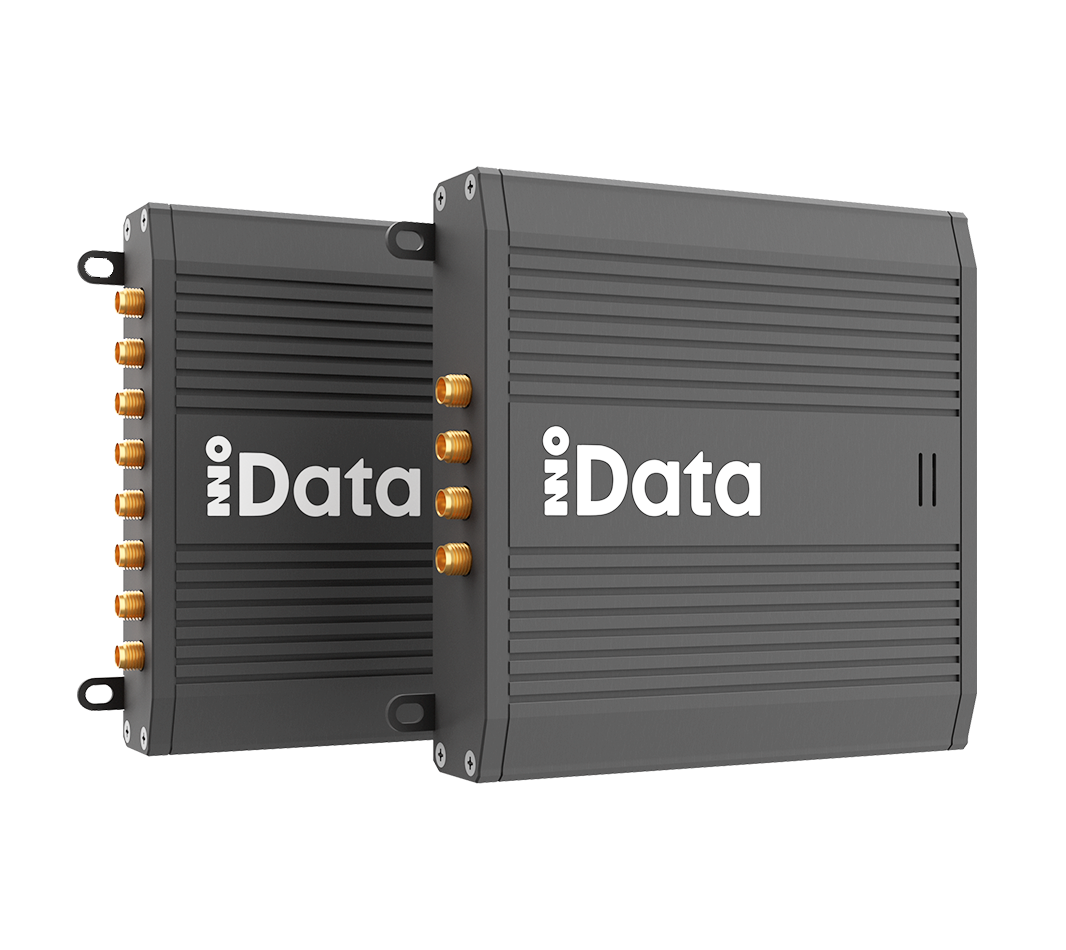

Industrial-Grade Fixed RFID Reader
Meeting Operational and Cost Requirements for Enterprises
| System Configuration | |
| Power | DC (12V~24V)，POE(802.3af 13W)，POE+(802.3at 25.5W) |
| Working current | 1.2A(33dBm@12V) |
| Standby current | 0.1A |
| GPIO Interface | 4-channel photoelectric input/3-channel output, 5V or 12/24V power output |
| Communication interface | RJ45、RS-232，Wi-Fi (optional) |
| Communication protocol | TCP/HTTP/MQTT |
| Man-machine interface | Buzzer: Prompt when power on; Prompt when reading tags(can be configurated) PWR: Power light (constant red when power on); RUN: Flashing Blue light when working properly |
| API support | Android, JAVA, C#(.NET), C++(VC) |
| UHF RFID | |
| Communication protocol | EPC global C1Gen 2 (ISO 18000-6C) |
| Impinj Gen2X | support |
| Frequency | FCC 902MHz~928MHz (USA) CE 865MHz~867MHz (EU) CN 920MHz~925MHz (China) 860-960MHz (customizable) |
| Output power | 0~33 dBm (1 dBm stepped adjustment) |
| Port isolation | >40dBc |
| Reading speed | Up to 900tags/s |
| RF interface | 4 /8 channel 50Ω SMA connector (SMA femal cradle) |
| Structure Parameters | |
| Size (H * W * D) | 120mm*120mm*26mm(L*W*H) |
| Weight | Four-channel: 415g Eight-channel: 480g |
| Colour | black |
| Material | aluminum |
| Environmental Parameters | |
| Working temperature | -25℃～+65℃ |
| Storage temperature | -40℃~+85℃ |
| Humidity | 5%~95% (no condensation) |
| Vibration resistance | Frequency range 5-100Hz, duration 30 minutes, acceleration 4.9m/s2 |
| Impact resistance | Endure maximum acceleration of 30m/s2, amplitude of 0.3mm, 50Hz, and duration of 2 minutes in three directions respectively |
| Anti-static | Contact discharge ± 4KV, air discharge ± 8KV |
| Electric fast transient pulse train | Power cord withstand voltage 1KV, signal cord withstand voltage 0.5KV |
| Radiated electromagnetic field immunity | Field strength 3V/m, frequency range 80-1000MHz |
| Surge immunity | Power cord: live wire to neutral wire withstand pulse voltage of 1KV Live wire to ground wire withstand pulse voltage of 2KV Neutral to ground withstand pulse voltage of 2KV Signal cord: withstand pulse voltage of 1KV |
| Accessories | |
| Standard | Power adapter * 1, GPIO Connector(12 Pins) *1 |
| Optional | Wi-Fi antenna (SMA male connector)*1 |
| Note | |
| ****** | As the product line is updating from time to time, the information in this document is subject to change without notice. |
