Ultra-low temperature resistant condensation-free smart terminal
Scan window, screen and device will heat automatically;
Device working in different parts of cold storage can maintain functional
Works normally for over 12 hours under -30℃;
No need to restart while replacing battery;
Operates continuously for a whole day
Captures information of name, product origin, and weight on GS1-EAN·UCC barcodes;
Accumulates weight automatically to complete inbound and outbound, or inventory.
Engine supports up to 21.4m long distance scanning;
Captures barcodes on shelves or goods far away while working on a forklift;
Recognizes shelves and conforms goods waiting to be sorted quickly

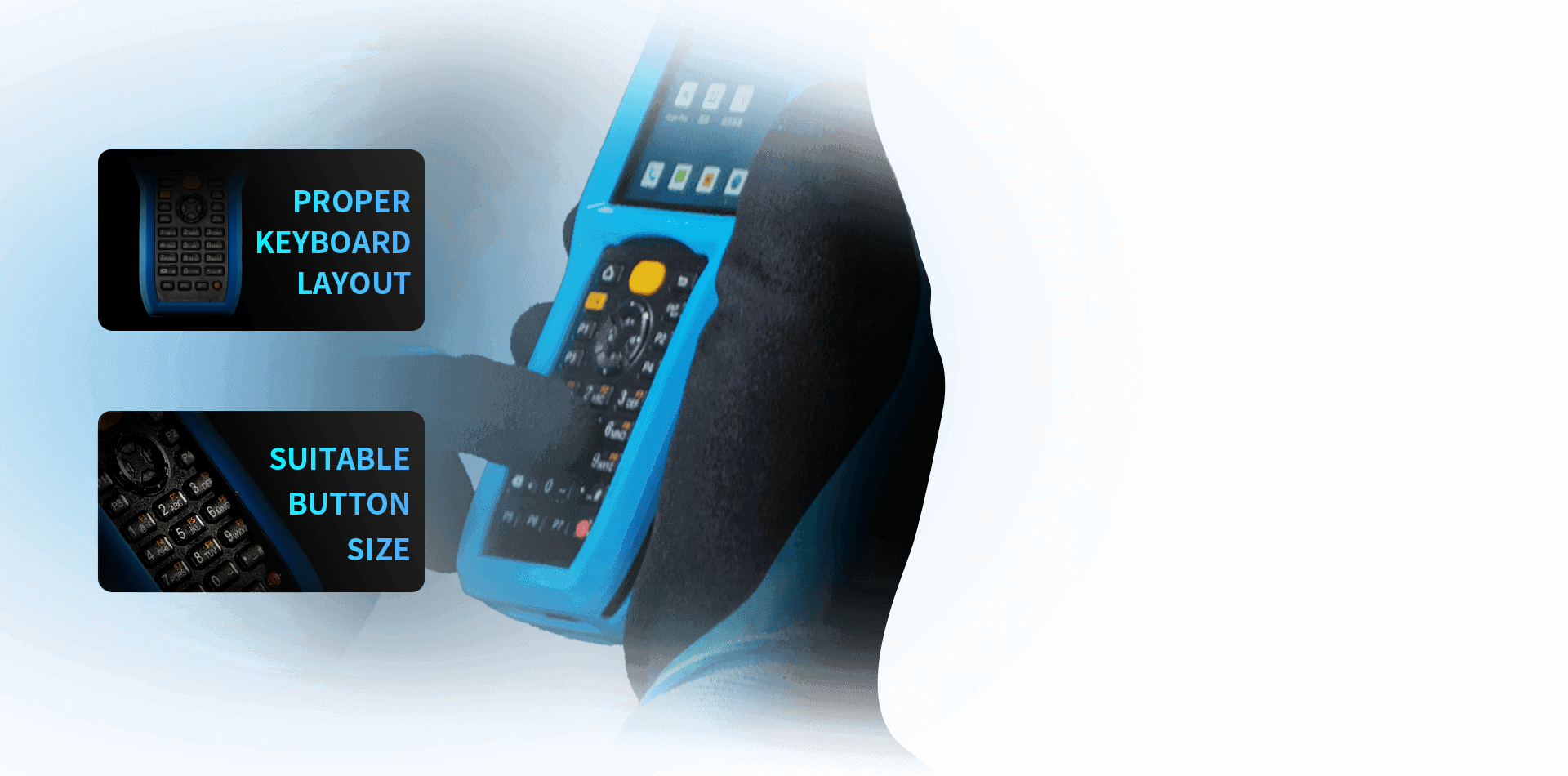

Dedicated for thick gloves, eliminates touch errors
while confirming or inputting information
Back wide groove with texture and back strap design;
Secure the device on hand, convenient to be held by one hand

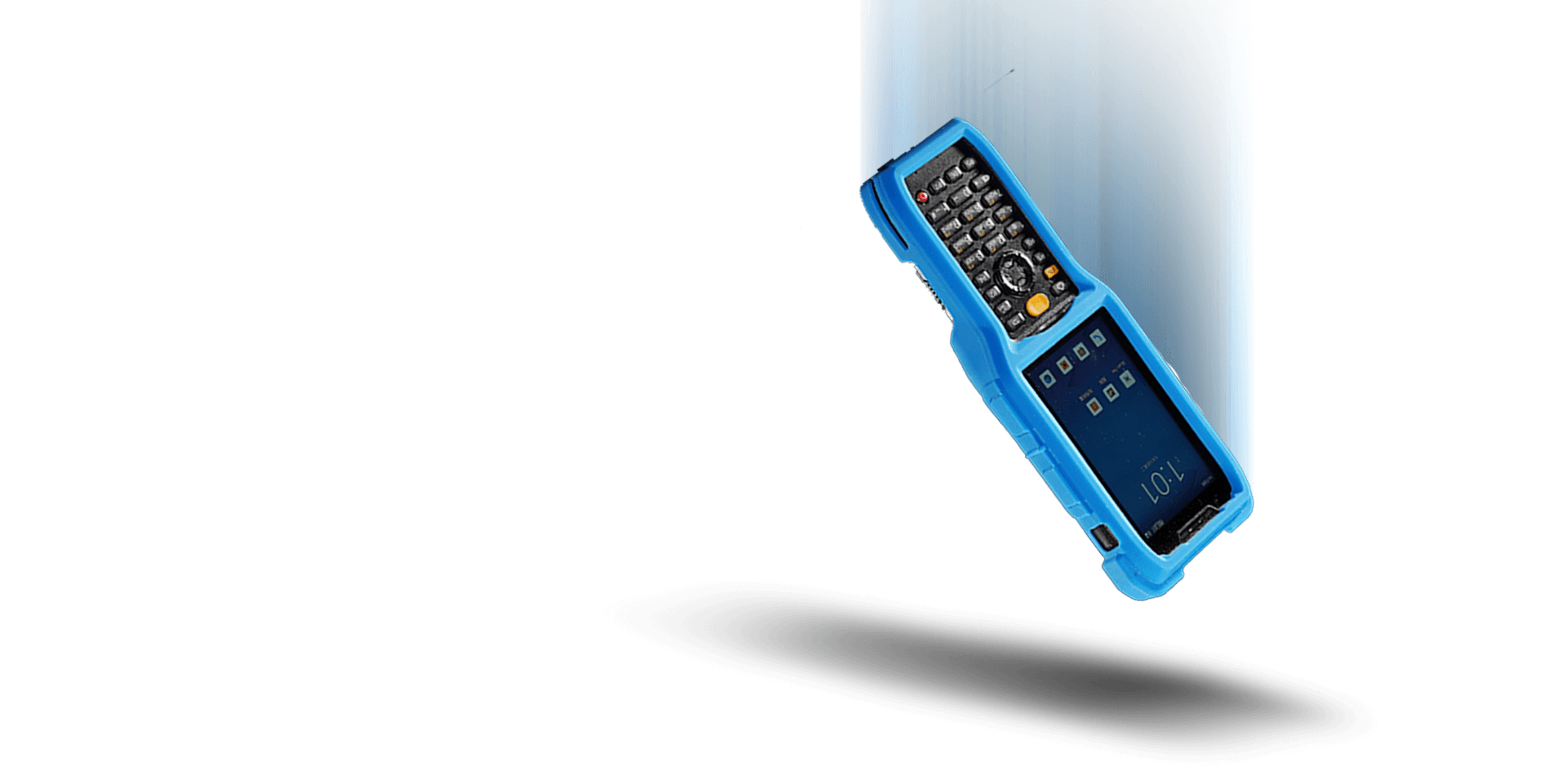

1.8m anti-drop(with case), workers can mount the device on forklift;
Keeps functional after unexpected drops
iTalk provides front-end workers and managers with real-time intercom. It has single call,
and group voice message functions, convenient for worker in different areas to communicate.
| System Configuration | |
| Processor | Octa-core 2.0GHz high-performance processor |
| Operating System | Android12.0（GMS） |
| Memory (ROM+RAM) | 64GB+4GB (standard) |
| SIM (eSIM: Not supported) |
Dual Nano SIM card WIFI ONLY version: No SIM, not supported |
| Expansion Slot | Micro SD card (up to 256GB) |
| Display Screen | 4-inch, resolution: 800*480 IPS HD Retina screen |
| Touch Screen | Industrial capacitive screen, support wet-hand operation/glove mode/multi-touch/gesture operation |
| Camera | 13 megapixels of rear camera, support auto-focus; 5 megapixels of front camera |
| Flashlight | 800mA flashlight |
| Keypad | 34 keypads in total: front key*29, side scan key *2, side PTT key *1, side ± volume key *2 |
| Battery | 3.6V lithium battery, with 6700mAh(standard), detachable, backup-battery Support; Execution standard: GB31241-2014 3.85V lithium battery, with 5250mAh(optional), detachable, backup-battery Support; Execution standard: GB31241-2022 |
| Audio | Built-in dual microphone (noise-canceling microphone) |
| Charging Method | Type-C charging and pin port charging, support 9V/2A, 5V/3A fast charging |
| Reminder | High-power speaker/3 sides scan LED reminder/Vibration reminder/charging LED reminder |
| Vibration Motor | Built-in vibration motor |
| Sensors | G-sensor/ Proximity sensor/Light sensor |
| Intercom Function (Optional) | Support one-button PTT calls |
| Structure Parameter | |
| Dimension (H*W*D) | 205mm*76mm*31mm |
| Weight | 458g (including the battery) |
| Communication Transmission | |
| WWAN (Network Frequency) | Chinese & Eurasian Version 2G：B2/B3/B5/B8 3G：WCDMA:B1/B5/B8，CDMA BC0，TD-SCDMA:B34/B39 4G：FDD-LTE:B1/B3/B5/B7/B8/B20，TDD-LTE:B34/B38/B39/B40/B41 WIFI ONLY version: Not Supported |
| WWAN (Data Service) | GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/EVDO/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE WIFI ONLY version: Not Supported |
| WLAN Function | Wi-Fi 802.11a/b/g/n/r/ac (2.4G + 5G dual-band Wi-Fi）support Wi-Fi 5G PA amplifier |
| Bluetooth | Bluetooth 5.0, support BLE |
| GPS | GPS/AGPS/Beidou/Galileo/GLONASS/QZSS |
| Environmental Parameter | |
| Working Temperature | -30℃ - 50℃ *Do not charge under low temperature conditions for the safety concerns |
| Storage Temperature | -40℃~70℃ (without the battery) |
| Humidity | 0 - 95% (no moisture condensation) |
| Drop Specification | Multiple drops to concrete floor from the height of 1.5m (without protective case) Multiple drops to concrete floor from the height of 1.8m (with protective case) |
| Roller Drop Specification | 1000 times of roller drops from a height of 0.5 meter |
| Ingress Protection | IP68 |
| ESD Protection | ±15KV (air discharge), ±8KV (contact discharge) |
| Scanning Engine | |
| Barcode Type | It can scan one-dimensional / two--dimensional barcodes |
| Scanning Accuracy | ≥3.33mil |
| Scanning Angle | Pitch: ±60°； Skew：±45°； Tilt：360° |
| View Angle | Horizontal：44.3°，Vertical：28.4°，Diagonal：51° |
| Motion Error Tolerance | 8m/s |
| NFC (Standard) | |
| Working Frequency | 13.56 MHz |
| Reading Distance | Within 60 mm |
| Communication Protocol | ISO14443A/14443B/15693 |
| Communication Interface | |
| USB Interface | Type-C (with headset function) *1 |
| OTG Interface | Support |
| Charging Interface | 8-pin charging port |
| Development Support | |
| Programming Language | Java |
| Development API | iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits), Android Standard Interface |
| Development Tool | Eclipse/Android Studio |
| Note | |
| **** | Due to irregular updates of the product line, the content is subject to change without notice. |
