i3

i2 i3

iData i3

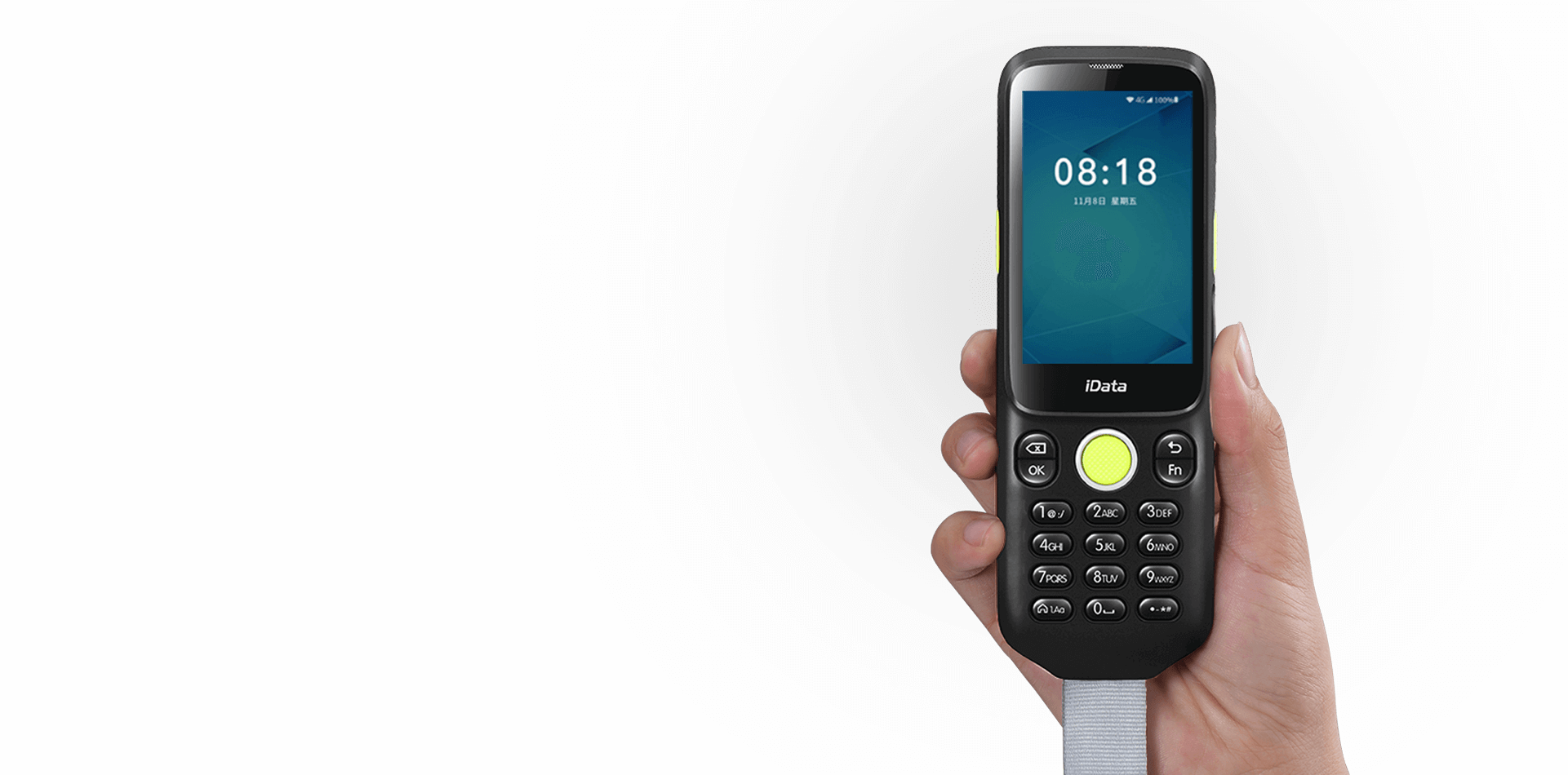

An ultra-lightweight
model with a slim design

i3  主体 左 -2.png

Super light of 178g

The whole machine weight can be up to 185g,
it can be easily carried or hung on the wrist,
so that your staff will not feel the burden after a long time of use;

178g超轻量 主体右.png

Small body with
large battery

Although the body is small,
it has a large battery of 3000mAh and unique system power-saving technology,
which can fully meet the use needs of your staff in a shift.

主体 左.png

Gold scanning angle

Optional function of supporting 27° gold scanning angle
can ensure that your employees
can scan bar codes at the high
or low positions easily without looking up or bending ,
and which can reduce the fatigue of employees.

主体 右-23.png
  • Super light of 178g
  • Small body with large battery
  • Gold scanning angle

Multiple communication modes

2.4g +5G dual-band Wi-Fi and Bluetooth 5.0 high-speed transmission
can ensure that the information collected by operators
can be timely uploaded to the background,
to avoid the order,
inventory and other management errors caused by information lag.

主体 靠右.png

High-power speaker

1.5W high-power speaker can let your employees easily hear the prompt sound
even in noisy environments such as stores and warehouses when using it,
so as to avoid the loss of management caused by missed messages

5大功率喇叭 主体 右.png
  • Multiple communication modes
  • High-power speaker

High-power speaker

4-core 2.0GHz 64-bit high speed processor and 2GB RAM+16GB ROM
high-end configuration can ensure that your equipment can be used for a long time,
can be used for a long time, prolong your purchase cycle and reduce your purchase costs.


Lower purchasing costs

If you purchase in mass, the budget costs will be more reduced for 40%,
and you can use the same volume of budget costs for purchasing,
the iData i3 gives you a 67% increase in value,
and which can play maximum utility with least money.

更低采购成本 主体 左.png
  • High-speed CPU
  • Lower purchasing costs

HD screen

The 3.2-inch 800X480 HD screen can smoothly switch almost all apps on the market. If equipped with different apps,
one machine can meet the using needs of your enterprise in different scenarios and environments.

高清屏幕 主体 左右都可以.png

Reliable protection

The light body has IP54 protection grade + 1.5 meters of concrete ground of falling ,
so that your employees can not worry about safety and reliability of the equipment in use,
and it can be safely used in a variety of rugged environments.

5.2 可靠防护 主体 右.png

Efficient code scanning

IData The scan engine self-developed by iData can improve code scanning speed by 50%,
and reduce power consumption by 50%,
to help your enterprise to be at an unstoppable position in data acquisition link .

主体 左.png
  • HD screen
  • Reliable protection
  • Efficient code scanning

i3 Specifications

System Configuration
Processor Quad-core 2.0GHz high-performance processor
Operating System Android 10.0
Memory (ROM+RAM) 16GB + 2GB (standard), 32GB + 3GB/64GB + 4GB (optional)
SIM Single SIM card
Display Screen 3.2-inch, resolution: 800*480 pixels
Touch Screen Industrial capacitive screen, support wet-hand operation/glove mode/multi-touch/gesture operation
Camera 8 megapixels of rear camera (optional: 13 megapixels), support auto -focusing
Flashlight 800mA flashlight
Keypad 24 keypads in total: front key*21, side scan key *2, side power key *1
Battery 3.85V lithium battery, with 3000mAh, undetachable
Audio Built-in microphone
Charging Method Type-C charging, support 18W fast charging
Reminder High-power speaker/Vibration reminder/LED reminder/Audio reminder
Vibrating Motor Built-in vibrating motor
Sensor G-sensor
Intercom Function (Optional) Support one-button PTT calls
Structure Parameter
Dimension (L*W*D) 158mm*54mm*18.5mm
Weight 178g (including the battery)
Communication Transmission
WWAN (Network Frequency) Chinese & Eurasian version: 2G: B2/B3/B5/B8 3G: WCDMA: B1/B5/B8,TD-SCDMA: B34/B39 4G: FDD-LTE: B1/B3/B5/B7/B8/B20, TDD-LTE:B34/B38/B39/B40/B41 American version: 2G: B2/B3/B5 3G: B1/B2/B4/B5 4G: B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41
WWAN (Data Service) GSM/GPRS/EDGE/UMTS/HSPA/HSPA+WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE
WLAN Function Wi-Fi 802.11a/b/g/n/r/ac (2.4G + 5G dual-band Wi-Fi), support fast roaming, support Wi-Fi 5G PA amplifier
Bluetooth Bluetooth 5.0, support BLE
GPS GPS/AGPS/BDS/Galileo/GLONASS/QZSS
Environmental Parameter
Working Temperature -20℃ - 60℃ *Do not charge under low temperature conditions for the safety concerns
Storage Temperature -40℃ - 70℃ (without the battery)
Humidity 0 - 95% (no moisture condensation)
Drop Specification Multiple drops to concrete floor from the height of 1.5m
Roller Drop Specification 500 times of roller drops from a height of 0.5 meters
Ingress Protection IP54
ESD Protection ±15KV (air discharge), ±8KV (contact discharge)
Scanning Engine
Barcode Type It can scan one-dimensional / two--dimensional barcodes
Scanning Accuracy ≥3.33mil
Scanning Angle Pitch: ±60°; Skew:±45°; Tilt:360°
View Angle Horizontal:44.3°,Vertical:28.4°,Diagonal:51°
Motion Error Tolerance 8m/s
NFC (Optional)
Working Frequency 13.56MHz
Reading Distance Within 60mm
Communication Protocol ISO14443A/14443B/15693
Communication Interface
USB Interface Type-C (with headset function) *1
OTG Interface Support
Development Support
Programming Language Java
Development API iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits), Android Standard Interface
Development Tool Eclipse/Android Studio
Accessories
Standard Accessories USB cable*1, hand strap*1
Optional Accessories Power adapter, protective case
Note
1 Due to irregular updates of the product line, the content is subject to change without notice.
