Enhancement of the whole machine far exceeds the expectation
New generation of professional-grade Android keyboard terminals
Adopting A75 structure, AnTuTu score can easily exceed 200,000 points
Improved performance: 200% comprehensive increase in performance for smoother processing of large amounts of data and complex applications.
Improved energy efficiency: The battery lasts longer with the same amount of power in the same operating environment.
Dramatically extended lifecycle: It remains smooth in operation even after 1~3 years usage, which meets the future needs of the enterprise
Extended device life: Significantly reduced heat generation and safer device operation
Performance Optimization: Improved multitasking capabilities and response times
User interface update: Introducing a new interface that makes it easier to get started.
Simplified privacy settings: makes the management of permissions clearly visible to users
Longer reading range: Up to 1.2m in reading code128 barcode of 20 mil, increased by 35%
Better reading capacity: reads barcodes with contrast as low as 10%, increased by 33%
Faster reading rate: up to 322 times/minute, increased by 14%
Battery life: 14% longer than the previous version
Battery replacement efficiency: supports power backup, no need to shut down and restart, saving 3~5 minutes for a single battery replacement
| System Configuration | |
| Processor | Octa-core 2.0GHz high-performance processor |
| Operating System | Android 14.0 |
| Memory (ROM + RAM) | 64GB+4GB (standard) |
| SIM | Single SIM card |
| Expansion Slot | Micro SD card (up to 512 GB) |
| Display Screen | 4-inch, resolution: 800*480 pixels |
| Touch Screen | Industrial capacitive screen, support wet-hand operation/glove mode/multi-touch/gesture operation |
| Camera | 8MP rear camera, support auto-focus |
| Flashlight | 800mA flashlight |
| Keypad | 28 keypads: front key*24, side scan key *2, sidepower key*1,sidecustomkey*1 |
| Battery | 3.85V lithium battery, with 5000mAh, detachable, backup battery support |
| Audio | Built-in microphone |
| Charging Method | Type-C charging and pin port charging, support 18W fast charging |
| Reminder | High power speaker/Vibration reminder/LED reminder |
| Vibrating Motor | Built-in vibrating motor |
| Sensors | G-sensor/Proximity sensor/Light sensor/Gyroscope/Geomagnetic sensor(optional) |
| Intercom Function (Optional) | Support one-button PTT calls |
| Structure Parameter | |
| Dimension (L*W*D) | 162mm*68mm*19mm (the thickest part of tilt-angle version is 29.4mm) |
| Weight | 278g (Battery included) |
| Communication Transmission | |
| WWAN (Network frequency) | China & Eurasian version: 2G:B2/B3/B5/B8 3G:WCDMA:B1/B5/B8 4G:FDD-LTE:B1/B3/B5/B7/B8/B20 TDD-LTE:B34/B38/B39/B40/B41 American version: 2G:B2/B3/B5 3G:B1/B2/B4/B5 4G:B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41/B66/ B71 |
| WWAN (Data service) | GSM/GPRS/EDGE/UMTS/HSPA/HSPA+/WCDMA/TDD-LTE/FDD-LTE |
| WLAN Function | Wi-Fi 802.11 a/b/g/n/r/ac (2.4G+5G dual-band Wi-Fi), support fast roaming |
| Bluetooth | Bluetooth 5.0, support BLE |
| GPS | GPS/AGPS/BDS/Galileo/GLONASS/QZSS |
| Environmental Parameter | |
| Working Temperature | -20°C - 60°C *Do not charge under low temperature conditions for the safety concerns |
| Storage Temperature | -40°C - 70°C (without the battery) |
| Humidity | 0 - 95% (no moisture condensation) |
| Drop Specification | Multiple drops to concrete floor from the height of 1.5m |
| Roller Drop Specification | 1000 times of roller drops from a height of 0.5 meter |
| Ingress Protection | IP65 |
| ESD Protection | ±15KV (air discharge), ±8KV (contact discharge) |
| Scanning Engine | |
| Barcode Type | It can scan one-dimensional / two-dimensional barcodes |
| Scanning Accuracy | ≧3.33mil |
| Scanning Angle | Pitch: ±60°; Skew:±45°; Tilt:360° |
| View Angle | Horizontal:44.3°，Vertical:28.4°，Diagonal:51° |
| Motion Error Tolerance | 8m/s |
| NFC (Optional) | |
| Working Frequency | 13.56 MHz |
| Reading Distance | Within 20 mm |
| Communication Protocol | ISO14443A/14443B/15693 |
| Communication Interface | |
| USB Interface | Type-C (with headset function) *1 |
| OTG Interface | Support |
| Development Support | |
| Programming Language | Java |
| Development API | iScan API (Scanning Development Kits), Device API (Device Management/Configuration Development Kits), Android Standard Interface |
| Development Tool | Eclipse/Android Studio |
| Accessories (More details in accessories guide) | |
| Standard Accessories | USB cable*1, power adapter*1, device-back strap*1, battery*1 |

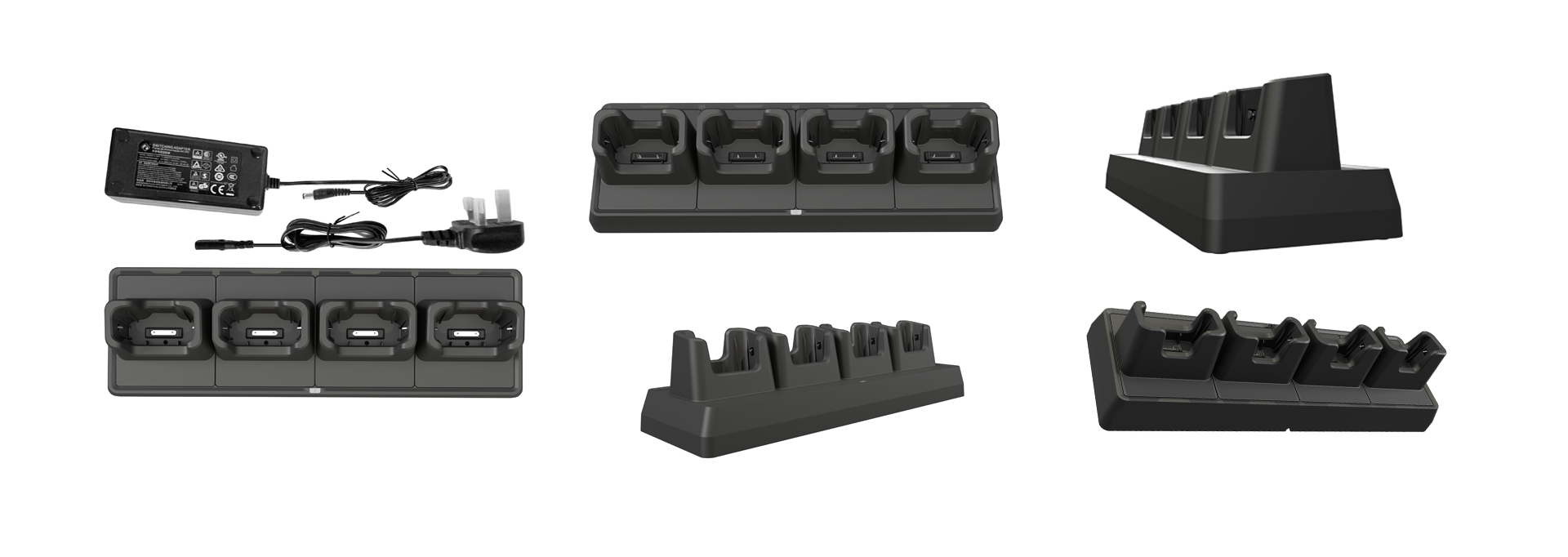

| Optional Accessories | Single charging cradle, bottom charger, 4-slot charging cradle, 4-slot battery charging cradle, fanny pack, hand strap, protective film，protective case |
| Note | |
| ****** | Note |
