80HC

iData 80HC

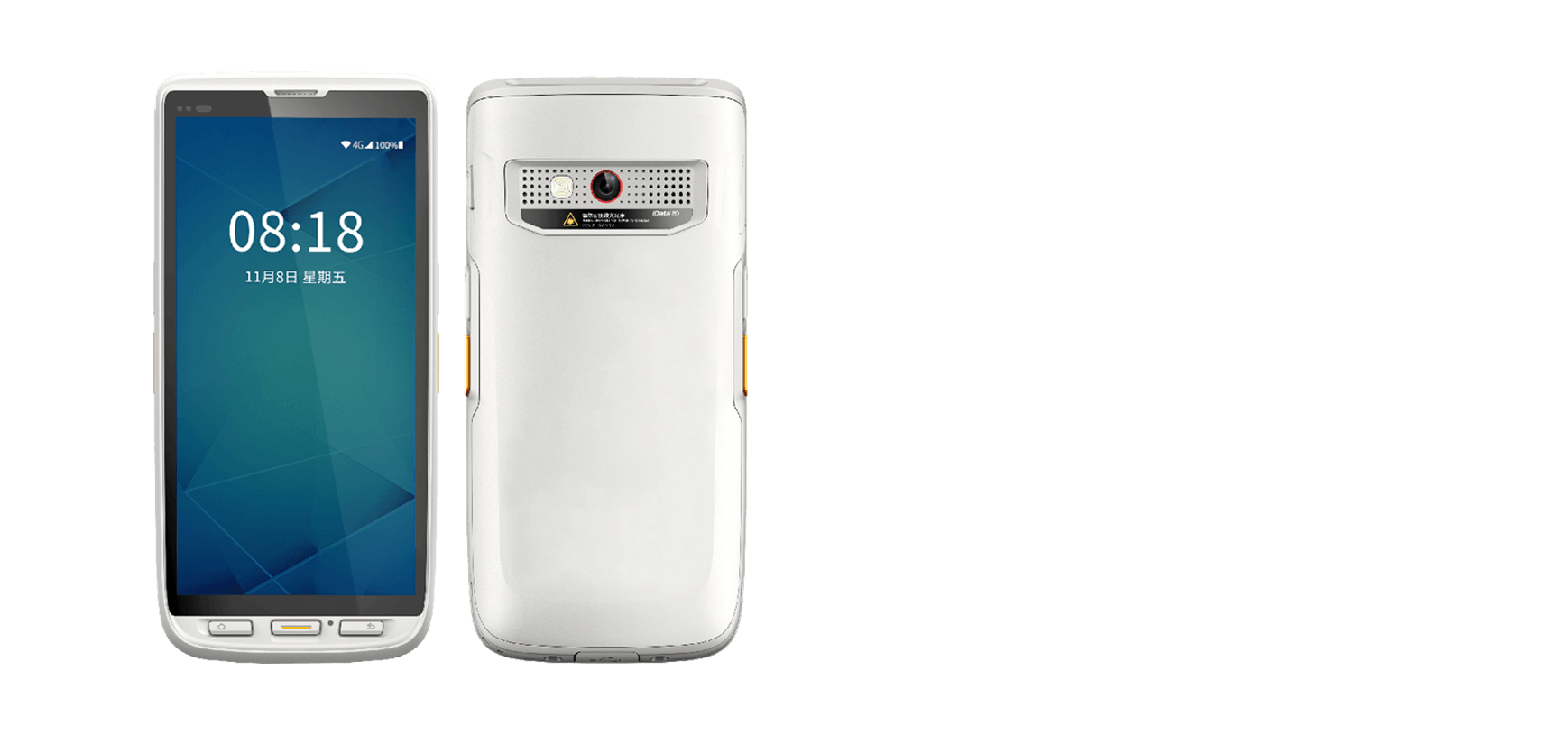

Healthcare Mobile Computer

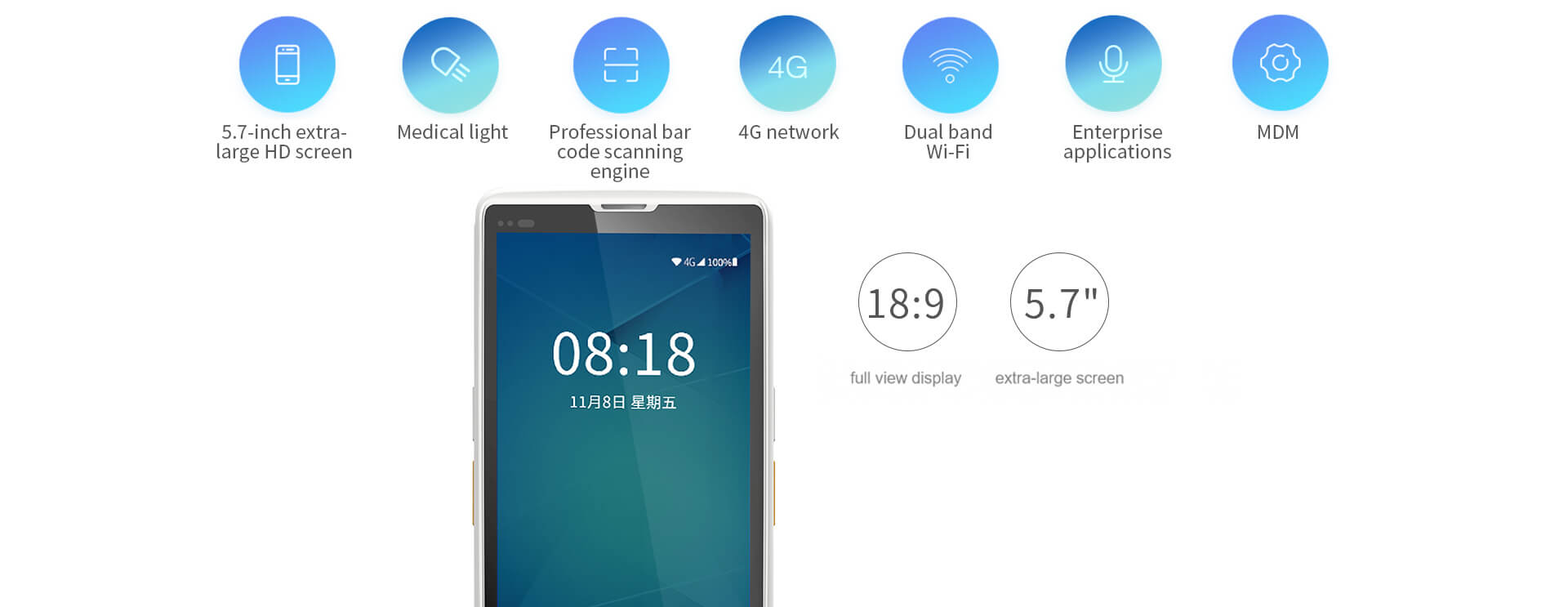

Extra-large HD screen

iAn industry-leading 5.7-inch extra-large screen, 18:9 full view display,
which is more comprehensive, thus easily checking the medical information

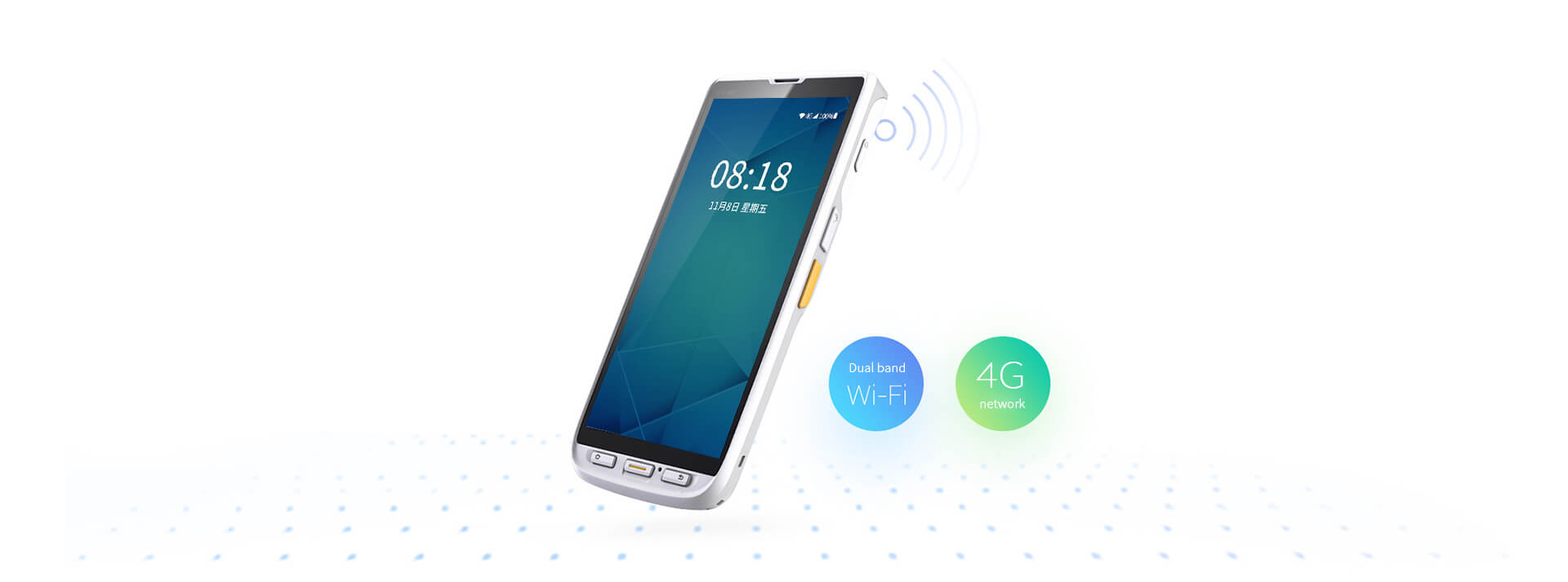

More efficient data transmission

iData 80HC supports dual band Wi-Fi (2.4GHz / 5GHz) wireless and supports 4G network.
It provides faster and more stable wireless communication for healthcare data transmission


iData series enterprise applications

iData 80HC self-developed Enterprise apps (iSeries Apps), among many others,it includes the iLauncher (Kiosk or Lock-down mode) where admin can customize
which apps and features are available for the users of the iData 80


MDM Mobile Security Management

Self developed iData MDM,Let the information department easily manage all PDA in the hospital at one time,Improve
the management of special tools and machines and reduce the pressure of management and maintenance.


80HC Specifications

System Configuration
Processor Octa-core 2.0 GHz
Operating system Android 9.0
Memory (ROM+RAM) 16GB+2GB,64GB+4GB(optional)
SIM Three select two card slots, support dual card dual standby
*Three-choice two-card slot: Two cards can be placed at the same time, nano SIM card + nano SIM card/nano SIM card + TF card
Expansion slot Micro SD card, up to 256 GB
Display screen 5.7-inch, resolution: 1440*720 pixel
Touch screen Industrial capacitive screen, supporting two-point touch + gesture operation
Camera 8 MP autofocus camera in the back side (13 MP optional), LED flash
Flashlight 800mA flashlight
Keyboard A total of 8 keys, front key*3, side scan key*2, side power key*1, side pupil light key*1, side PTT key*1
Battery Lithium battery 3.8V, 4000mAh, non-removable *Executive standard: GB31241-2014
Audio Built-in microphone
Charging Type-C charging and pin port charging, 18W fast charging
Prompts Vibration reminder/LED reminder/audio reminder
Fingerprint recognition Supporting
Vibrating motor Built-in vibrating motor
Sensor Gravity sensor (G-sensor)
Intercom function (optional) Supporting one-button PTT calls
Structure parameters
Dimension (LxWxD) 164mm*79mm*15.5mm
Weight 240g(Within battery)
Communication transmission
Wireless wide area network
(Network frequency)
"Asia & Europe:
2G:B2/B3/B5/B8
3G:WCDMA:B1/B5/B8,CDMA BC0,TD-SCDMA:B34/B39
4G:FDD-LTE:B1/B3/B5/B7/B8/B20,TDD-LTE:B34/B38/B39/B40/B41
America:
2G:B2/B3/B5
3G:B1/B2/B4/B5,CDMA&EVDO:BC0/BC1 (America)
4G:
B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41"
Wireless wide area network
(Data service)
GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/EVDO/WCDMA/TD-SCDMA/TDD-LTE/FDD-LTE
WLAN Wi-Fi 802.11a/b/g/n/r/ac(2.4G+5G dual-band Wi-Fi) ,Wi-Fi 5G PA
Bluetooth Bluetooth 5.0+BLE
通讯传输
GPS GPS/AGPS/北斗/伽利略/GLONASS
Operating Environment
Working temperature -20℃~60℃
*For your safety, please do not charge in a low temperature environment
Storage temperature -40℃~60℃(Without battery)
Humidity 0%~95% (no condensation)

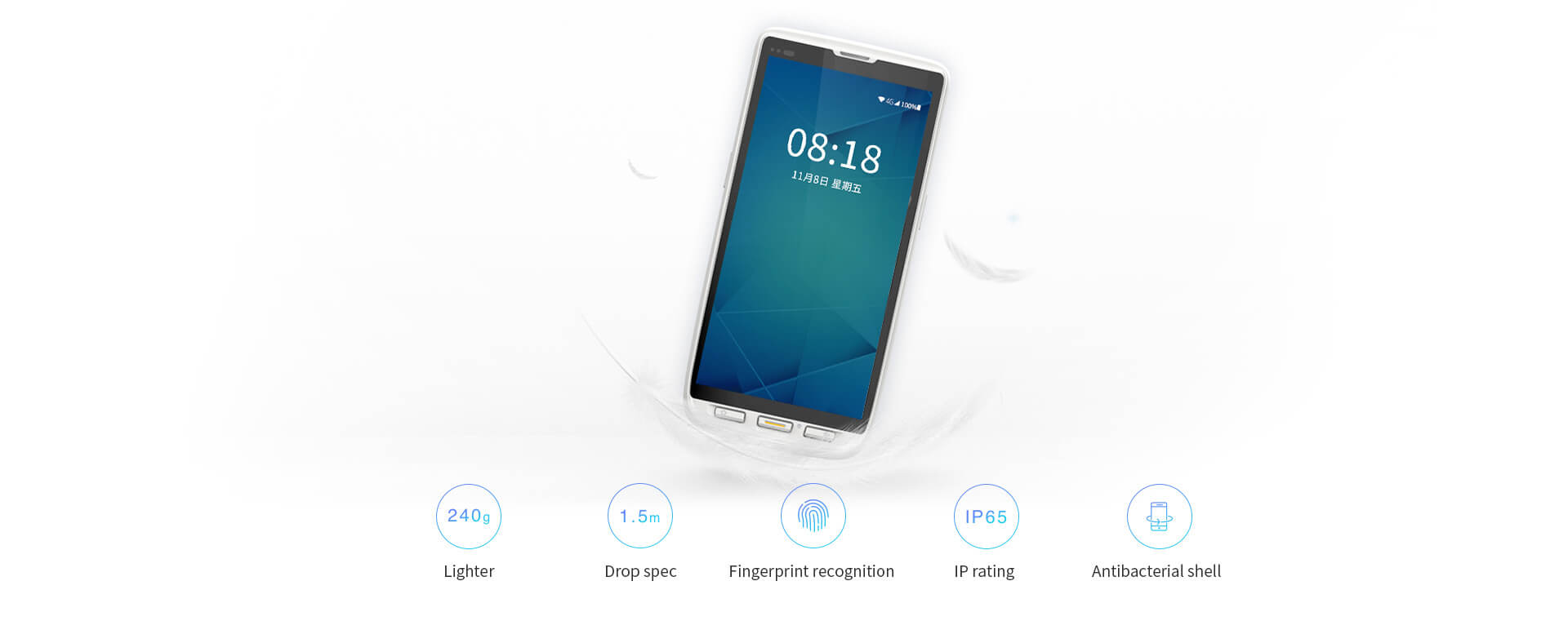

Drop specification 1.5m concrete floor dropped several times
Protection level IP65
Electrostatic protection ±15KV (air discharge), ±8KV (contact discharge)

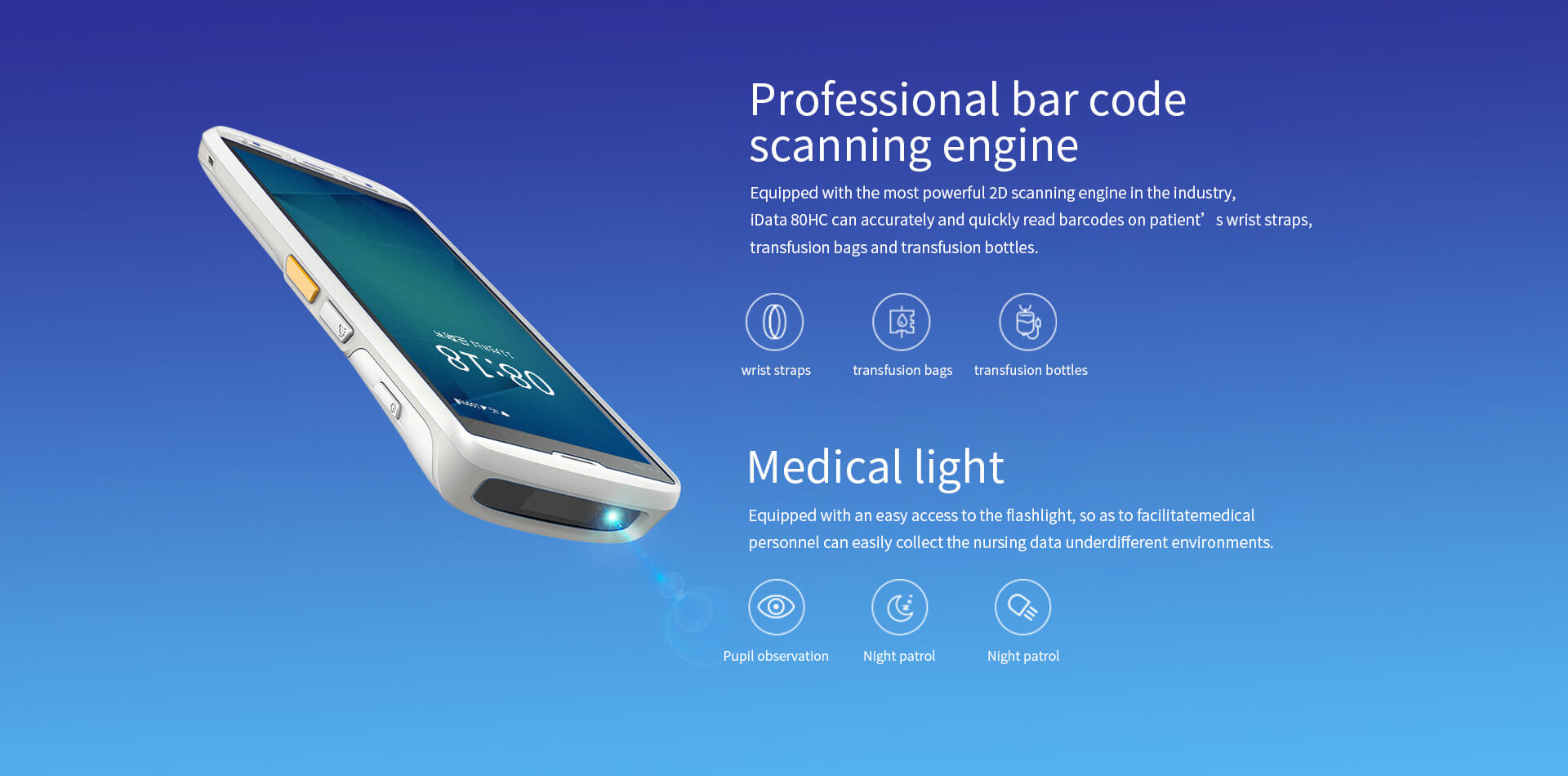

Scan engine
Barcode Support 1D/2D scanning engine
Scanning accuracy ≥3.33mil
Scanning angle Tilt ±60°, deflection ±60°, rotation 360°
Angular Field of View 水平Horizontal: 44.3°; Vertical: 28.4°; Diagonal: 51°
Motion tolerance 8m/s
NFC (Optional)
Frequency 13.56MHz
Reading distance 50mm以内
Communication protocol ISO14443A/14443B/15693
Input/output Interface
USB interface Type-C (with earphone function) *1
OTG interface Supporting
Development support
Development language Java
API iScan API (Scan Development Kit), Device API (Device Management/Configuration Development Kit), Android standard interface
Development tool Eclipse/Android Studio
Accessories
Standard accessories USB cable*1, power adaptor*1, SIngle charging cradle*1, hand strap*1, Protective film*1
Optional accessories charging cable,device 4-slot charging cradle,protective case,waist bag
Note
1 Due to irregular updates of the product line, the content is subject to change without notice.
