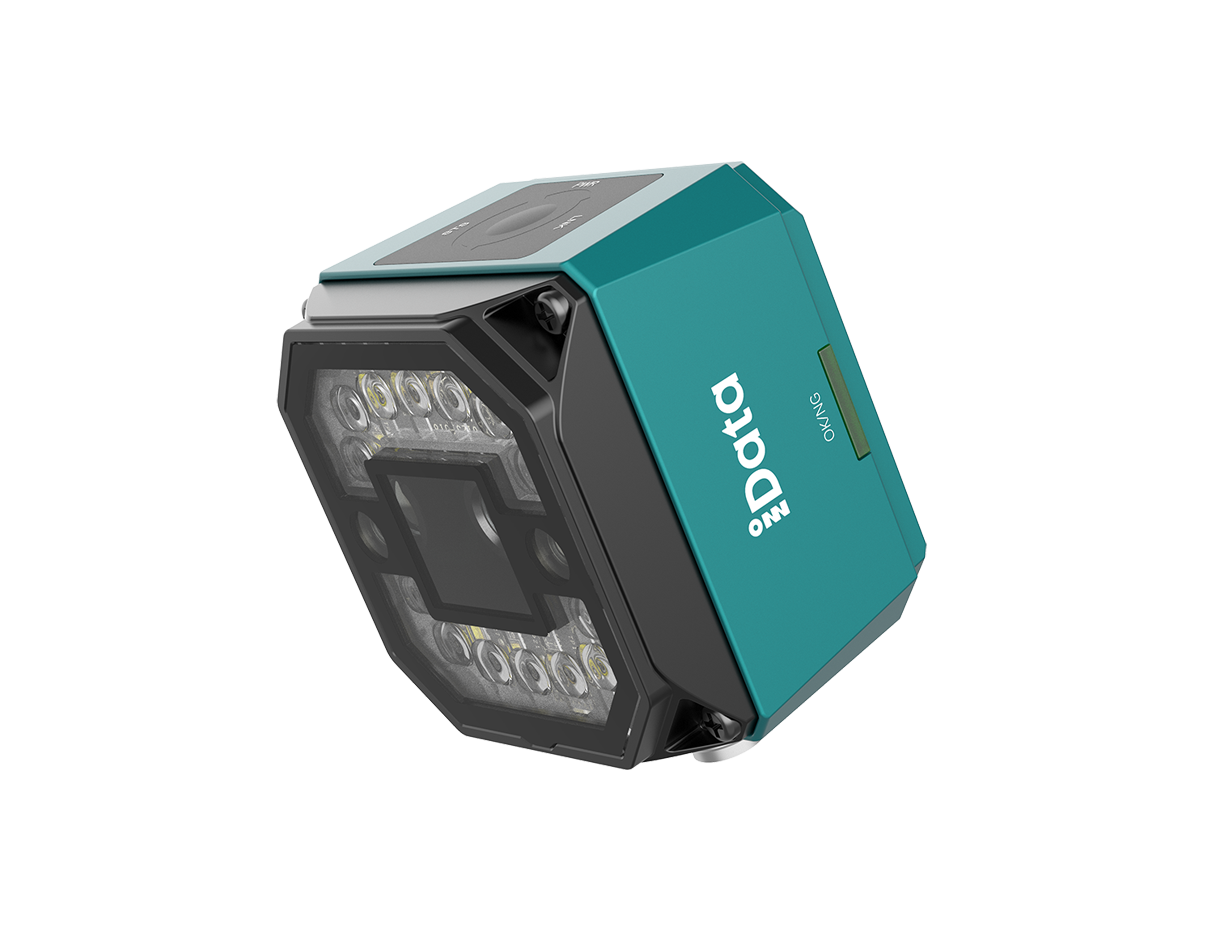

Industrial-Grade Fixed-Mount Scanner
Built for Reliable, High-Speed Decoding
| Hardware Parameters | |
| Resolution | DM3BLS-13P: 1208×1024ppi DM3BLS-16P: 1408x1024ppi DM3BLS-42P: 2368×1760ppi |
| Camera | Mechanical focus |
| Fill-in Light | White light, optional red/blue light |
| Indicator Light Source | Red LED |
| Indicator on Housing | Power indicator: PWR Network indicator: LNK Status indicator: STS Result indicator: OK/NG |
| Structural Parameters | |
| Size (LxWxD) | DM3BLS-13P: 65.2mm×65.2mm×47mm DM3BLS-16P: 65.2mm×65.2mm×42mm DM3BLS-42P: 65.2mm×65.2mm×47 mm |
| Weight | DM3BLS-13P: Est. 280g DM3BLS-16P: Est. 249.5g DM3BLS-42P: Est. 280g |
| Screw Holes on Housing | Screw hole size：M4 4 holes on the back |
| Scan Performance | |
| Scan Rate | DM3BLS-13P: 84 codes/s DM3BLS-16P: 84code/s DM3BLS-42P: 60 codes/s |
| Frame Rate | DM3BLS-13P: Max. 60 FPS DM3BLS-16P: Max. 60 FPS DM3BLS-42P: Max. 30 FPS |
| Capture range | DM3BLS-13P: 20mm~600mm DM3BLS-16P: 60mm-600mm DM3BLS-42P: 60mm-600mm |
| Code system | One dimension： Code 39，Code 93，Code 128，CodaBar，EAN，ITF25，MATRIX25，MSI，CODE11，INDUSTRIAL25，CHINAPOST Two dimensions： QR，DM, PDF417, etc. |
| Electrical Parameters | |
| Max. Output | DM3BLS-13P: 20W 24V DC DM3BLS-16P: 20W 24V DC DM3BLS-42P: 47.5W 24V DC (Fill-in light is on) |
| Voltage | 24V DC |
| Digital I/O | 17-pin M12 interface provides power and I/O: includes 3 non-isolated input (LineIn 0/1/2), 3 non-isolated output(LineOut 0/1/2), 1 RS232 input, 1 RS232 output supports triggering the device through the top button |
| Data Interface | Fast Ethernet（100 Mbit/s） |
| Environmental Parameters | |
| Working Temperature | 0℃ ~ 50℃ |
| Storage Temperature | -30℃ ~ 70℃ |
| Humidity | 20% ～ 95%RH (no condensation) |
| IP Rating | IP67 (with waterproof lens cover installed) |
| Ambient Light | 0~100000Lux |
| Communication Protocol | |
| Protocol | SmartSDK，TCP Client，Serial，FTP，TCP Server，Profinet，MELSEC，Ethernet/IP， ModBus，Fins，SLMP |
| Certifications | |
| Certifications | CE、FCC、RoHS |
| Accessories | |
| Standard Accessories | M12 17PIN convert to OPEN+ RJ45DB9, network port male connector，3m adaptor |
| Optional Accessories | Installation panel |
