Best choice of generic wired scanner in the industry
Retailing, logistics, healthcare, public utility
Goods code, payment code, express code,
drug code, health code
Soc NPU acceleration technology and SmartLight3.0
decoding algorithm combination
Cured/wrinkled/damaged/dirty barcodes
can be deal with easily

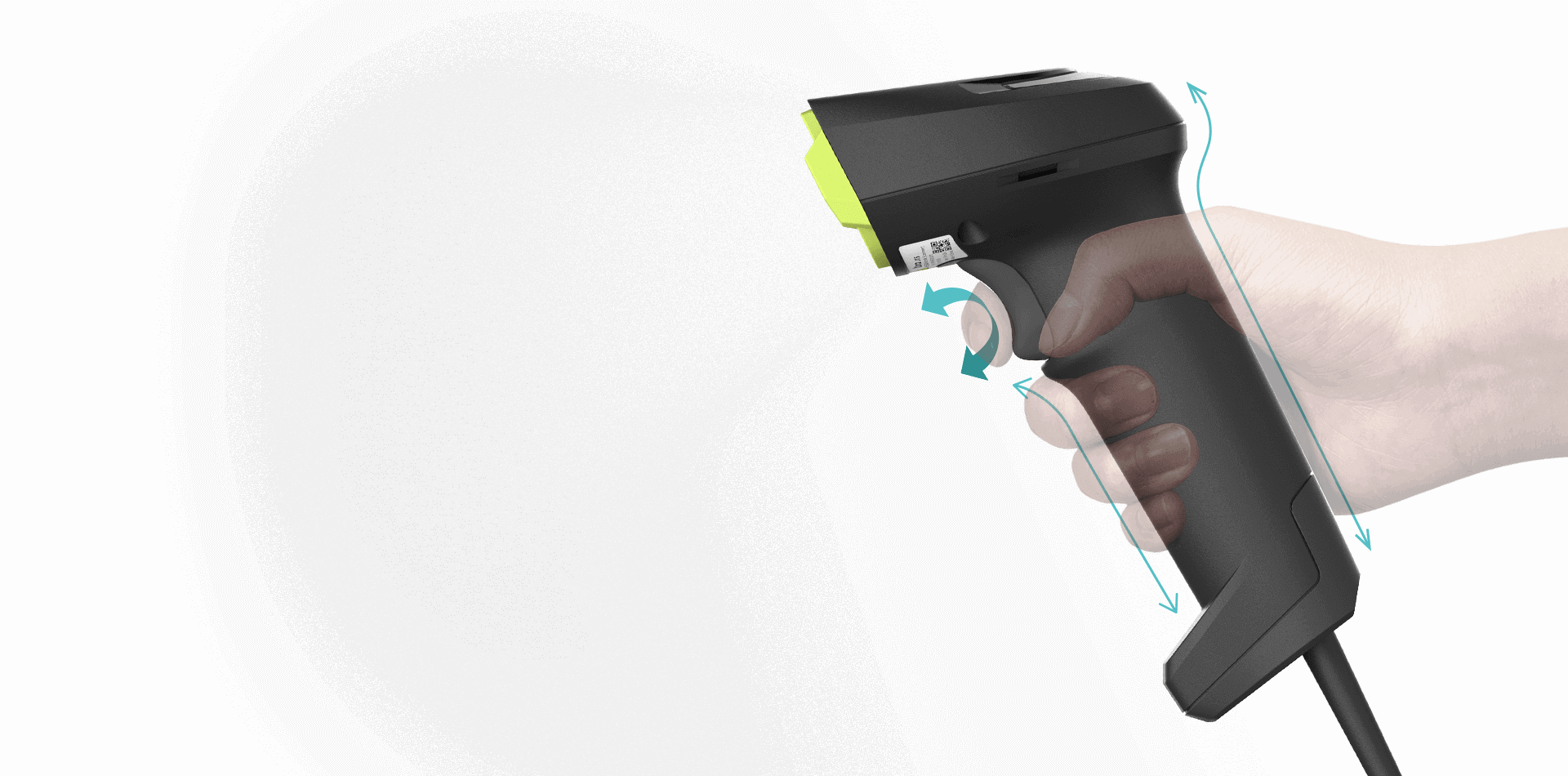

The streamlined handle and high-rebound trigger
Time and energy saving operation
The humanized notifications, including 90dB buzzer and LED light indicator
Suitable for noisy environments.
IP52+1.8m anti-drop + 5-million times lifespan trigger
A worry-free using experience
Windows、Android、Linux systems etc. are compatible.
You can start scanning right
after turning on the device.
Users can do the scanner setting through PC or smart phones.
Barcode setting, decoding attribute, reading modes etc.
Barcode books are no longer necessary.
| Performance Parameter | |
| Light Sensor | 1280*1080 pixels |
| Light Source | WHITE |
| Scanning Performance | |
| Scanning Accuracy | ≥3.33mil |
| Scanning Angle | Pitch: ±60°； Skew：±45°； Tilt：360° |
| View Angle | Horizontal：39.6°，Vertical：33.8°，Diagonal：50.4° |
| Minimum Reading Contract | 15% |
| Motion Tolerance | 15mil code128 1.5m/S |
| Physical Parameter | |
| Size (H*W*D) | 175.5mm（H）*85.3mm（W）*64.5mm（D） |
| Weight | 158.5g |
| Working Voltage | 4.5V~5.5V（DC） |
| Current | 160mA（typical），400mA（maximum） |
| Interface | USB-HID，USB-CDC，RS232 |
| Reminder | Buzz reminder/LED reminder |
| Housing Material | PC+ABS |
| Environment Parameter | |
| Working Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Humidity | 5%～95%（No condensation） |
| Ingress Protection | IP52 |
| Drop Specification | Multiple drops to concrete floor from the height of 1.5m |
| Ambient Light | 0Lux~100000Lux |
| ESD Protection | ±15KV (air discharge), ±8KV (contact discharge) |
| Corresponding Regulations | |
| Electric Safety | IEC 62368 |
| Environmental Specification | RoHS directive 2011/65/EU，GB/T 26572 |
| LED Safety | IEC 62471:2006 |
| EMI/RFI | FCC Part 15 Class B，EN 55032:2015，EN 55035:2017 |
| Decoding Range | |
| 3.33mil Code128 | HD（High Density） ：4.5cm~11cm SR（Standard Range）：8.0cm~13cm |
| 10mil Code128 | HD（High Density） ：2.5cm~20cm SR（Standard Range）：3.0cm~44cm |
| 10.83mil QR Code | HD（High Density） ：2.5cm~15.0cm SR（Standard Range）：5.0cm~25cm |
| 20.83mil QR Code | HD（High Density） ：2.5cm~22.0cm SR（Standard Range）：2.5cm~46cm |
| Code System | |
| 1D | code128、EAN-8、EAN-13、UPC-A、UPC-E、codabar、 code11、code32、code39、code93、Interleaved 2of 5、 Matrix 2 of 5、IATA 2 of 5、UK Plessey、MSIPlessey、 GS1DataBar, etc. |
| 2D | Aztec，Data Matrix，Micro PDF 417，PDF 417，QR，Micro QR，Han xin code, Grid Matrix, etc. |
| Accessories | |
| Standard Accessories | USB cable*1，Power cord*1，user manual*1 |
| Optional Accessories | Cradle, serial cable |
| Note | |
| ****** | As the product line is updating from time to time, the information in this document is subject to change without notice. |
