Flagship grade performance
Configured with the self-developed scan engine,
support the new Android 10.0 system,
and the CPU can support at least Android 13.0 version
With flagship hardware and software configurations,
the iData K1 Pro can last longer for the same price.

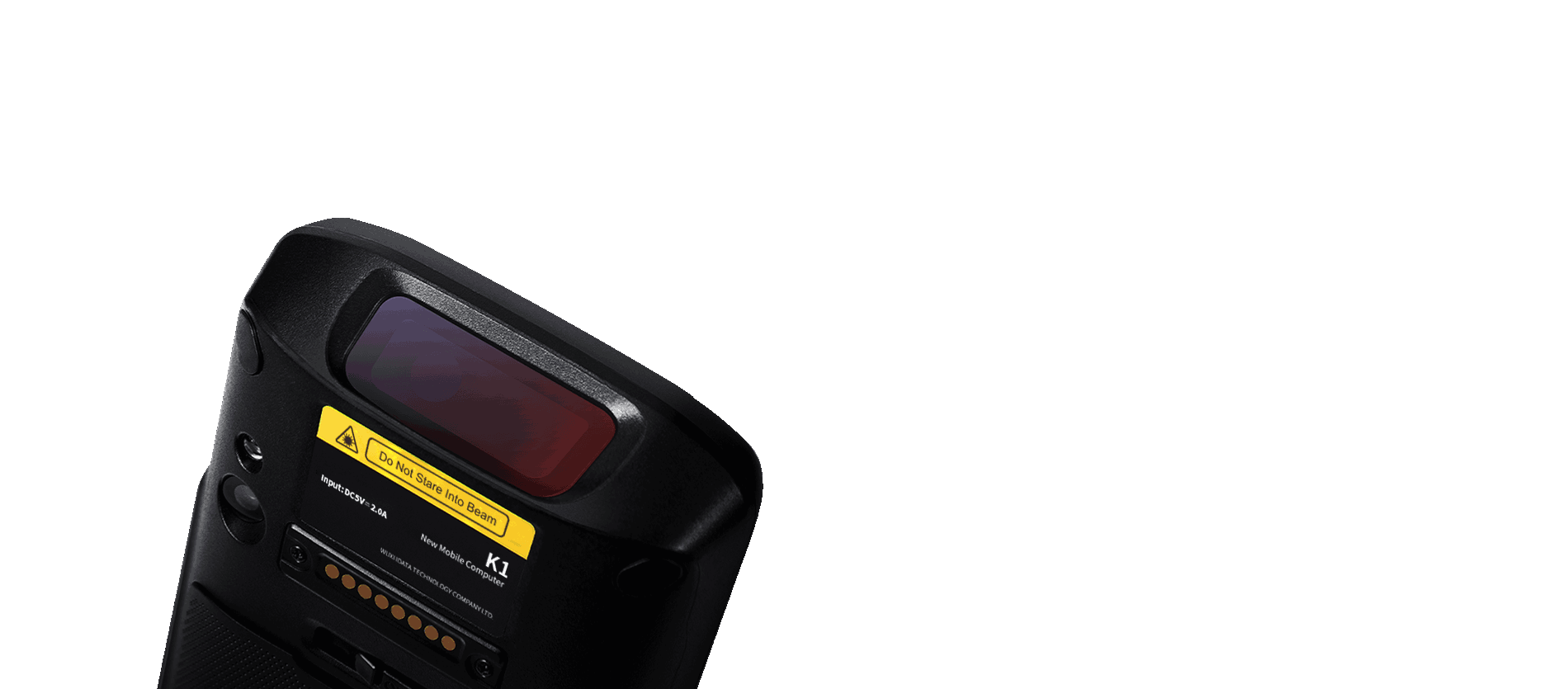

Core black technology Smart light 2.0, decoding speed is increased by 50%,
up to 1200 per minute of decoding, so that your enterprise has efficient data acquisition capabilities.
The scanner supports AI intelligent dimming and power saving modes,
which can effectively reduce power consumption,
the capacity of automatically adjusting of electricity and cruising has been significantly improved.
No bar code position control and focal length switch,
it can ensure that your employees can quickly read whether in bending, standing,and forklift operation,
which can greatly meet the scanning needs of employees in multiple scenarios.
iData K1 Pro has excellent ergonomic design:
Holding part of the bulge takes on stick shape, the hand feel is full and natural, if holding for a long-term, the hands are not easy to fatigue;
The raised front end of the protective screen can protect against falling damage, and play the steady roles of jacking the palm ;
Conventional 20° index finger lifting position design, so that iData K1S can achieve front and rear balance;
The non-valgus design reduces wrist fatigue and provides all-day comfort for workers.

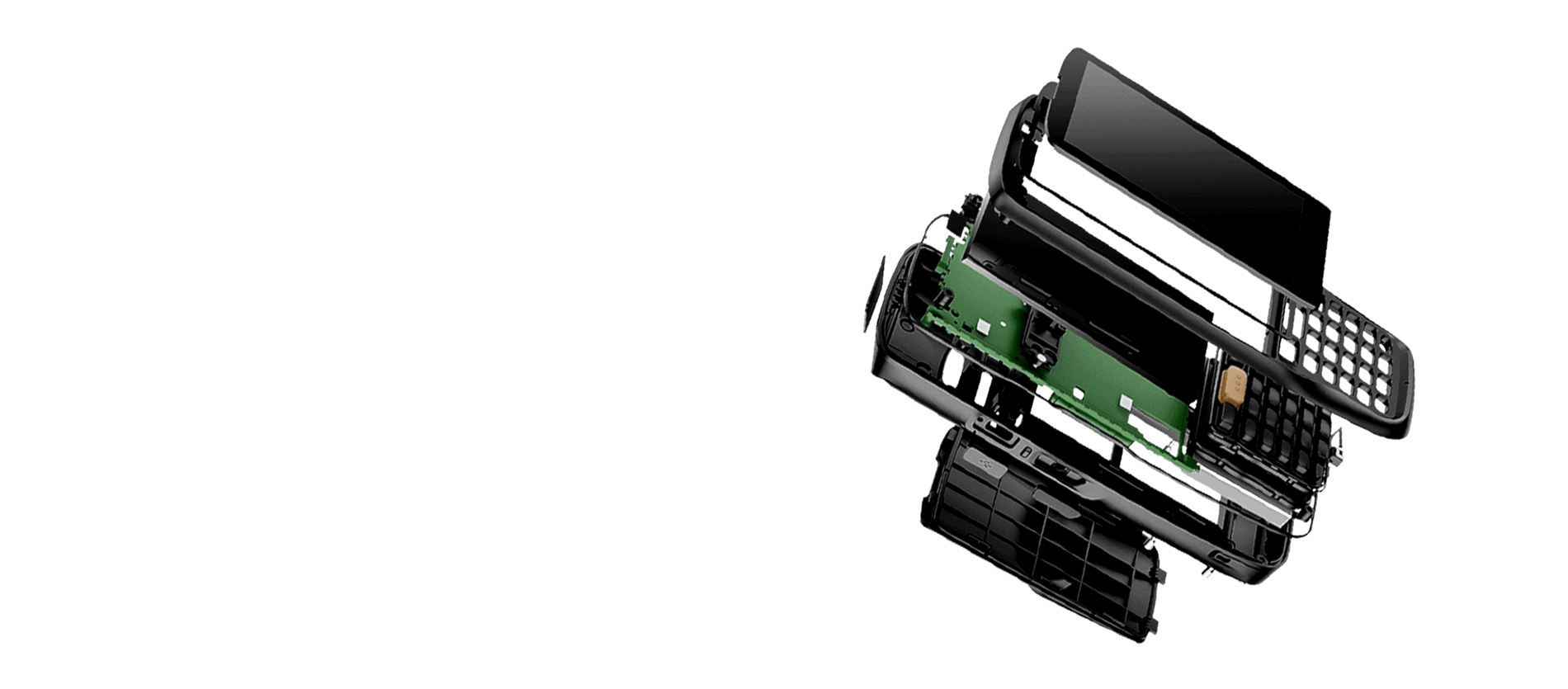

Reliable and durable design for a variety of complex environments:
The iData K1 Pro can response easily either falling in water, on concrete ground, or used in high temperature,
low temperature or dust environments,
it is the more durable handhold terminal in its class.

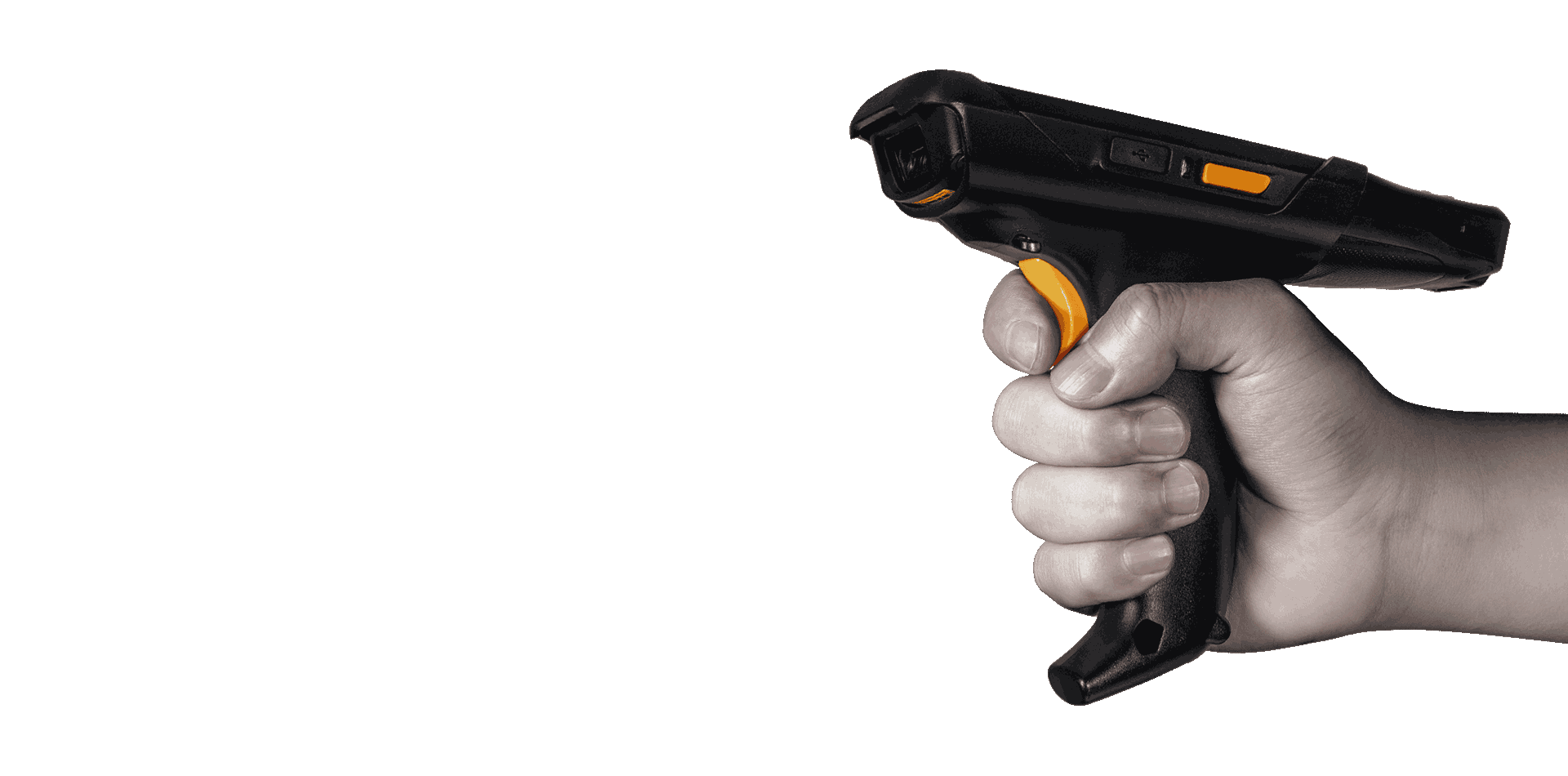

The iData K1 Pro can be optionally equipped with an handhold scanner's handle accessory,
which is ready to use to easily handle intensive scanning tasks even on high-intensity scanning days.
iData's hardware management platforms, such as "MDM",
"MAM" and "SEC" enable you to quickly deploy when purchasing in large quantities,
helping enterprises to manage equipment at lower costs.
| System Configuration | |
| Processor | Octa-core 2.0 GHz |
| Operating system | Android 10.0 |
| Memory (ROM+RAM) | 64GB+4GB |
| SIM | Single SIM card |
| Expansion slot | Micro SD card, up to 256 GB |
| Display screen | 4-inch, resolution: 800*480 pixel |
| Touch screen | Industrial capacitive screen, supporting two-point touch + gesture operation |
| Camera | 13 MP autofocus camera in the back side, LED flash |
| Flashlight | 800mA flashlight |
| Keyboard | A total of 26 keys, front key*23, side power key*1, side scan key*2 |
| Keypad backlight | White |
| Battery | Lithium battery 3.8V power supply, 4400mAh, detachable *Executive standard: GB31241-2014 |
| Audio | Built-in microphone |
| Charging | Type-C charging and pin port charging, 12W fast charging |
| Prompts | High-power speaker/vibration reminder/LED reminder |
| Vibrating motor | Built-in vibrating motor |
| Sensor | Gravity sensor (G-sensor) / proximity sensor / light sensor / geomagnetic sensor / gyroscope |
| Intercom function (optional) | Supporting one-button PTT calls |
| Structure parameters | |
| Dimension (LxWxD) | 168mm*71mm*26mm |
| Weight | 270g(Within battery) |
| Communication transmission | |
| Wireless wide area network (Network frequency) |
Asia & Europe 2G：B2/B3/B5/B8 3G：WCDMA:B1/B5/B8，CDMA BC0，TD-SCDMA:B34/B39 4G：FDD-LTE:B1/B3/B5/B7/B8/B20，TDD-LTE:B34/B38/B39/B40/B41 America 2G：B2/B3/B5 3G：B1/B2/B4/B5，CDMA BC0/BC1 (America) 4G： B1/B2/B3/B4/B5/B7/B12/B17/B28A/B28B/B41 |
| Wireless wide area network (Data service) |
GSM/GPRS/EDGE/CDMA/UMTS/HSPA/HSPA+/EVDO/WCDMA/TD-SCDMA/TDD -LTE/FDD-LTE |
| WLAN | Wi-Fi 802.11a/b/g/n/r/ac/ax ready（2.4G+5G dual-band Wi-Fi，Wi-Fi 6 ready），Wi-Fi 5G PA |
| Bluetooth | Bluetooth 5.1+BLE |
| GPS | GPS/AGPS/Beidou/Galileo/GLONASS/QZSS |
| Operating Environment | |
| Working temperature | -20℃~60℃ *For your safety, please do not charge in a low temperature environment |
| Storage temperature | -40℃~70℃（Without battery） |
| Humidity | 5%～95% (no condensation) |
| Drop specification | 1.5m concrete floor dropped several times |
| Roller drop specification | 500 times of roller drops from a height of 0.5 meters |
| Protection level | IP65 |
| Electrostatic protection | ±15KV (air discharge), ±8KV (contact discharge) |
| Scan engine | |
| Barcode | Support 1D/2D scanning engine |
| Scanning accuracy | ≥3.33mil |
| Scanning angle | Tilt ±60°, deflection ±60°, rotation 360° |
| Operating Environment | |
| Angular Field of View | Horizontal: 44.3°; Vertical: 28.4°; Diagonal: 51° |
| Motion tolerance | 8m/s |
| NFC | |
| Frequency | 13.56MHz |
| Reading distance | Within 30mm |
| Communication protocol | ISO14443A/14443B/15693 |
| Input/output Interface | |
| USB interface | Type-C (with earphone function) *1, transfer speed USB 3.1 |
| OTG interface | Supporting |
| Development support | |
| Development language | Java |
| API | iScan API (Scan Development Kit), Device API (Device Management/Configuration Development Kit), Android standard interface |
| Development tool | Eclipse/Android Studio |
| Accessories | |
| Standard accessories | USB cable*1, power adaptor*1,hand strap*1, wrist strap*1 |
| Optional accessories | single cradle，charging cable，device 4-slot charging cradle，battery 4-slot charging cradle，pistol grip |
| Note | |
| 1 | Due to irregular updates of the product line, the content is subject to change without notice. |
